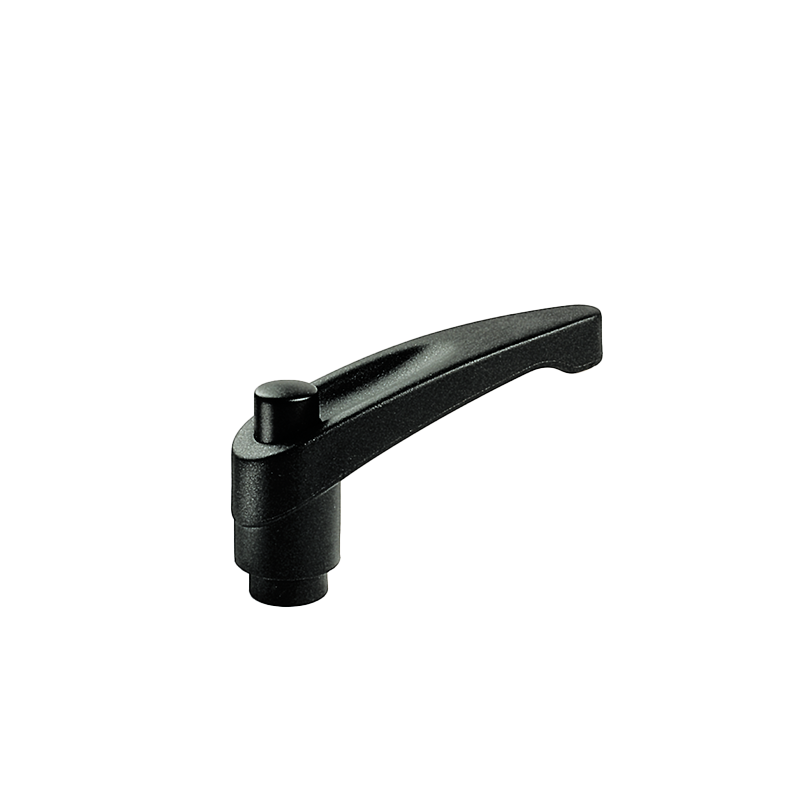

Clamping Handle, glass fiber reinforced polyamide, female thread M8, L=75mm, H=48mm
MT104249
Clamping Handle in glass fiber reinforced polyamide with female thread M8. The length is 75mm and the height is 48mm. We can deliver a wide range of products on request. Please contact us for more information.

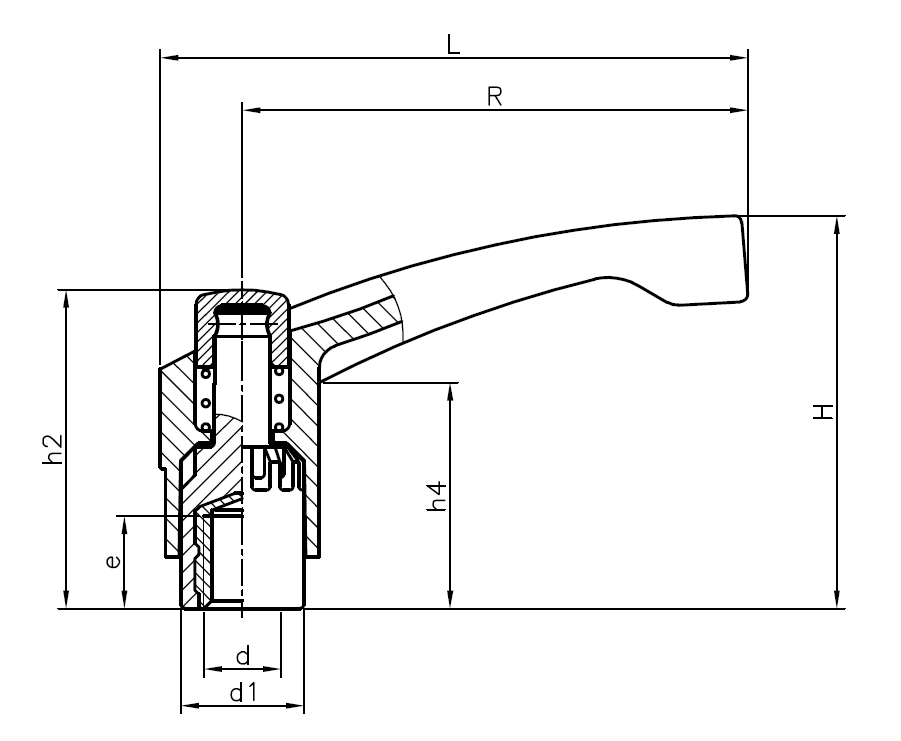

d1
16
Colour
Black
Thread material
Stainless steel
Tread size
M8
Thread type
Female thread
h2
42
h4
26
Material type
Glass fiber reinforced polyamide
Thread length in mm
14
Height in mm
48
Length in mm
75
Mounting length in mm
65
Long description
Clamping Handle in glass fiber reinforced polyamide with female thread M8. The length is 75mm and the height is 48mm. We can deliver a wide range of products on request. Please contact us for more information.
