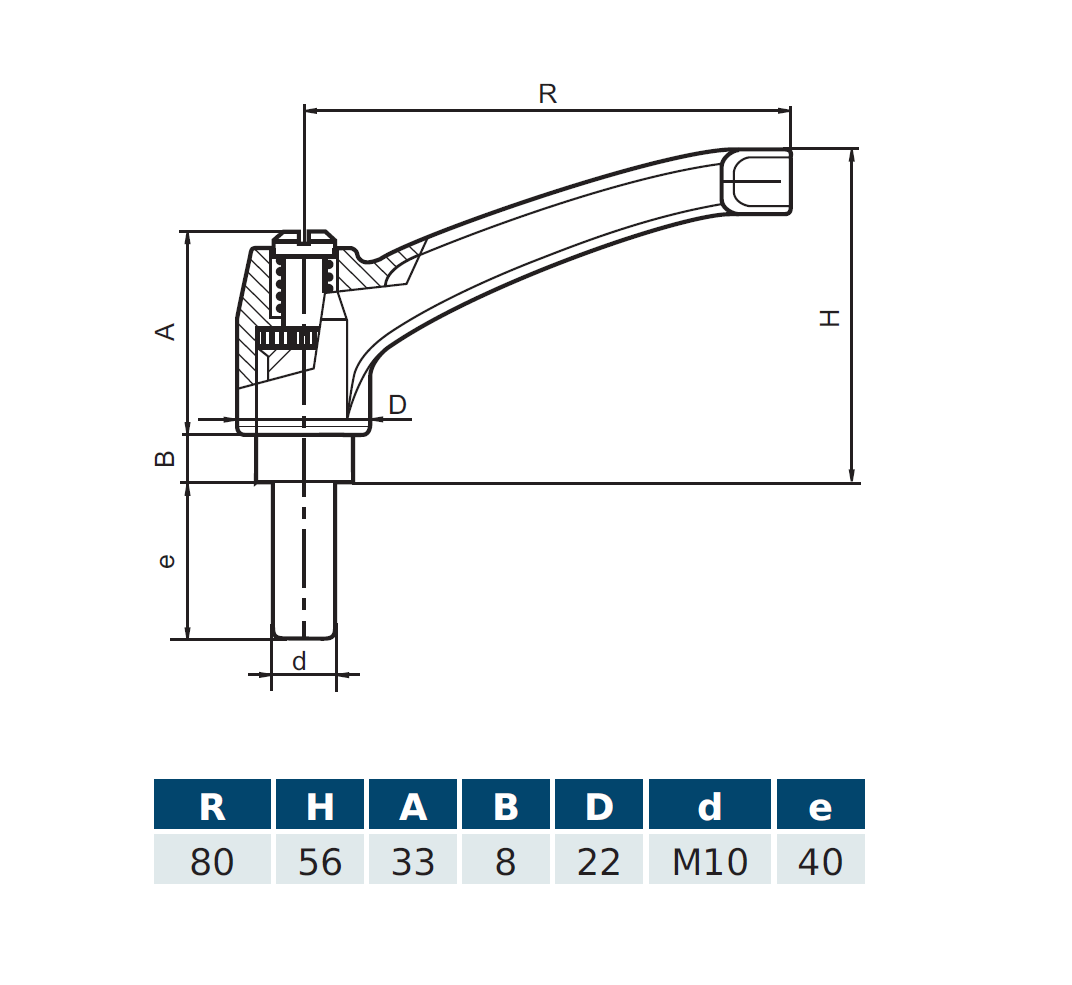

Clamping handle, die-cast zinc, male thread M10, L=91mm, H=56mm
MT106330
Clamping handle in die-cast zinc with male thread M10. The length is 91mm and the height is 56mm. We can deliver a wide range of products on request. Please contact us for more information.
Colour
Black
Thread material
Steel
Tread size
M10
Thread type
Male thread
h4
0
Material type
Die-cast zinc
Surface finish
Blackened steel
Gevindlængde i mm
40
Height in mm
56
Length i mm
91
Mounting length in mm
80
Long description
Clamping handle in die-cast zinc with male thread M10. The length is 91mm and the height is 56mm. We can deliver a wide range of products on request. Please contact us for more information.
