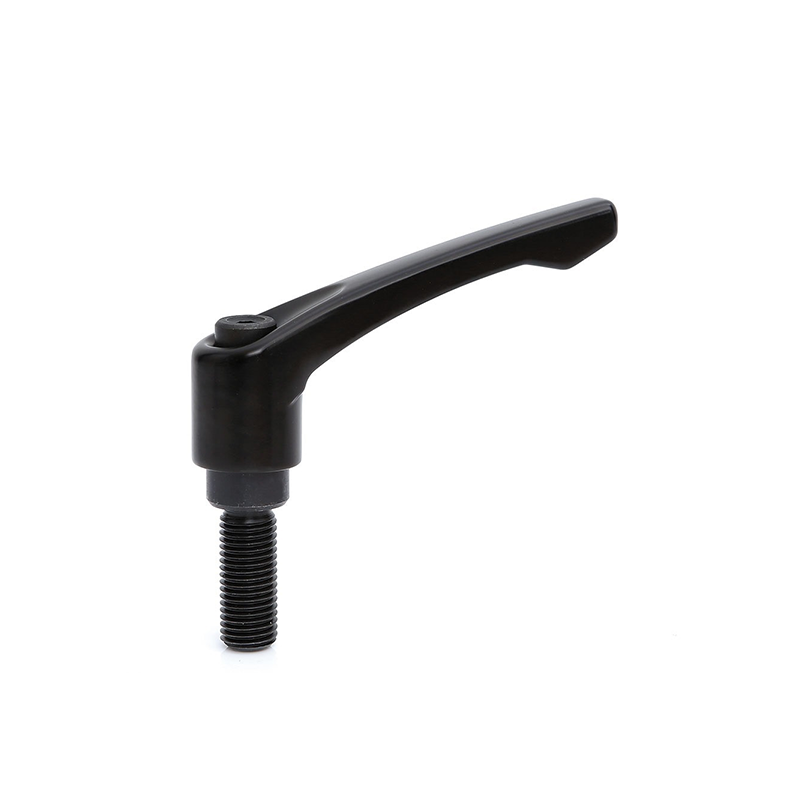

Clamping handle, die-cast zinc, male thread M10, L=mm, H=65mm
MT106357
Clamping handle in die-cast zinc with male thread M10. The length is mm and the height is 65mm. The surface treatment of the handle is: black powder coated. We can deliver a wide range of products on request. Please contact us for more information.
d1
19
Colour
Black
Thread material
Steel
Tread size
M10
Thread type
Male thread
h2
43
h4
0
Material type
Die-cast zinc
Surface finish
Blackened steel
Thread length in mm
50
Height in mm
65
Mounting length in mm
92
Net Weight (Kg)
0.2
HS Code
8302490099
Country of Origin
CN
Long description
Clamping handle in die-cast zinc with male thread M10. The length is mm and the height is 65mm. The surface treatment of the handle is: black powder coated. We can deliver a wide range of products on request. Please contact us for more information.
