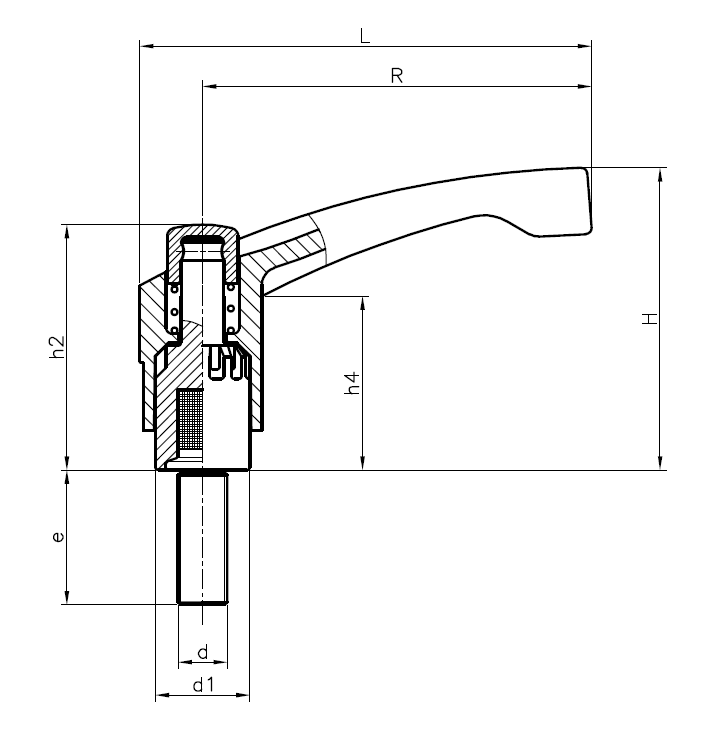

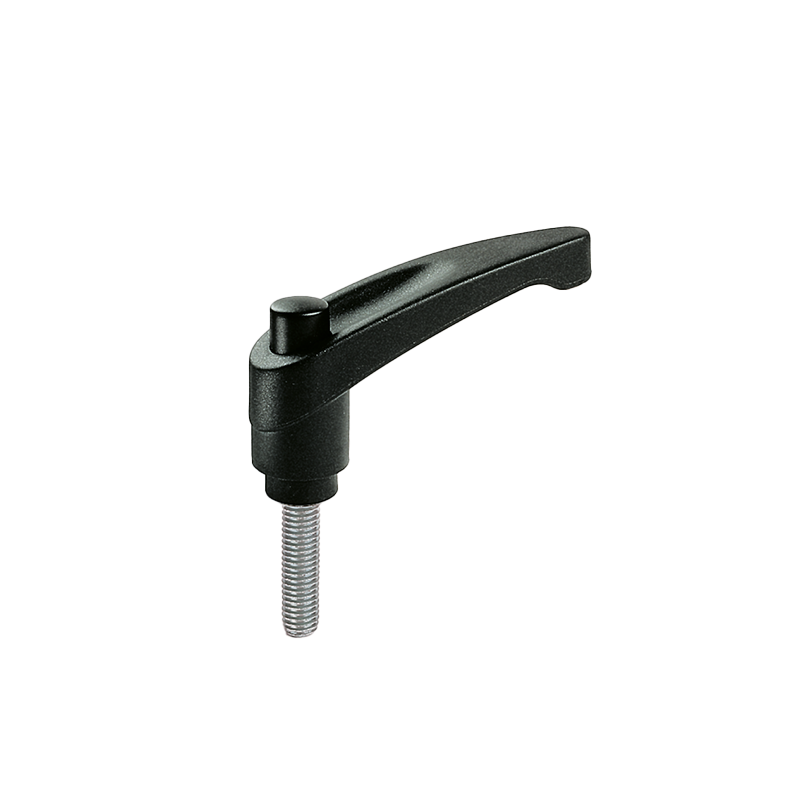

Clamping Handle, glass fiber reinforced polyamide, male thread M10, L=98mm, H=63mm
MT104279
Clamping Handle in glass fiber reinforced polyamide with male thread M10. The length is 98mm and the height is 63mm. We can deliver a wide range of products on request. Please contact us for more information.
d1
20
Colour
Black
Thread material
Stainless steel
Tread size
M10
Thread type
Male thread
h2
51
h4
34
Material type
Glass fiber reinforced polyamide
Thread length in mm
20
Height in mm
63
Length in mm
98
Mounting length in mm
85
Long description
Clamping Handle in glass fiber reinforced polyamide with male thread M10. The length is 98mm and the height is 63mm. We can deliver a wide range of products on request. Please contact us for more information.
