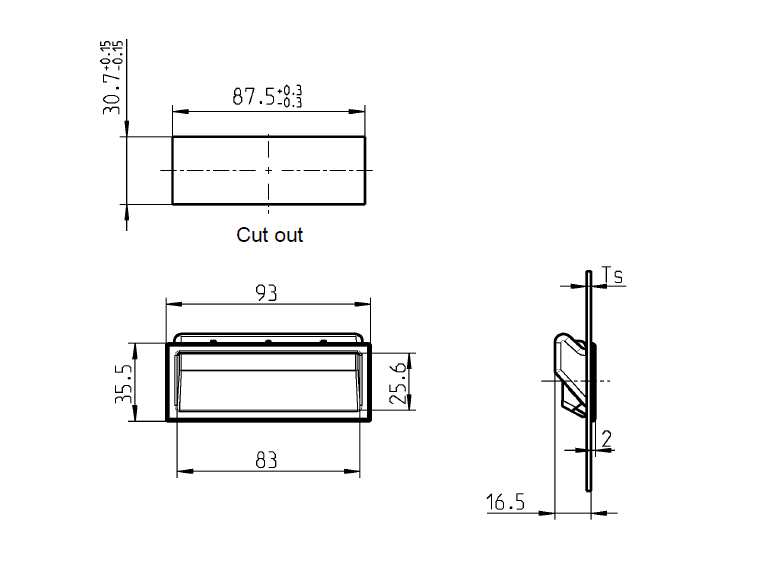

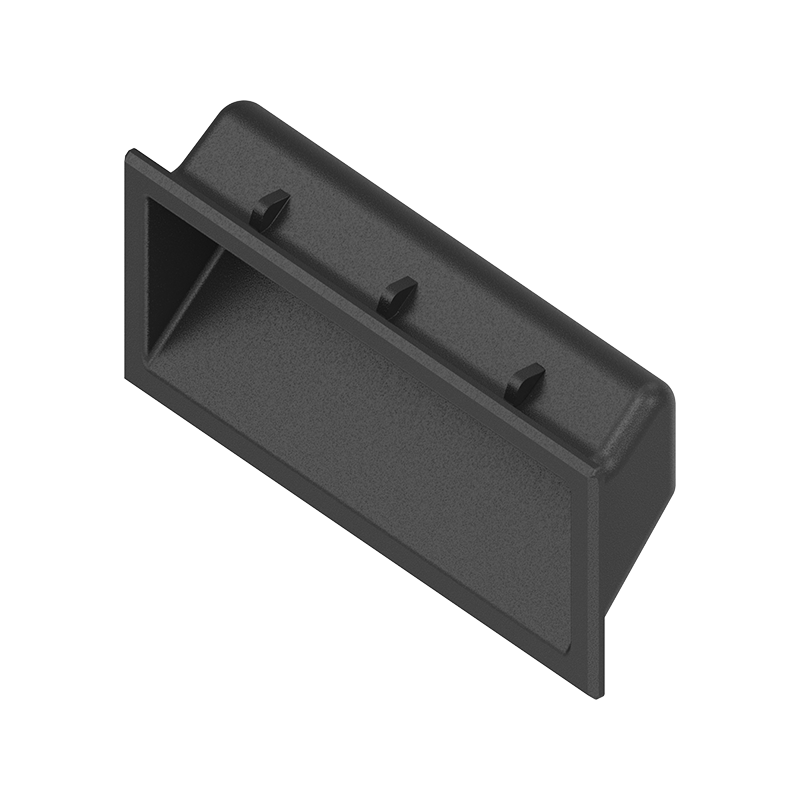

Flush Handles, snap-in, glass fiber reinforced polyamide, H= 35,5mm, B= 93mm, Ts= 1,75-2,2mm
MT102521
Flush Handles with snap-in manufactured in glass fiber reinforced polyamide. The height is 35,5mm and the width is 93mm, the plate thickness range for mounting is 1,75-2,2mm. We can deliver a wide range of products on request. Please contact us for more information..
Dybde i mm
18,5
Colour
Black
Fjedervirkning
No
Material type
Glass fiber reinforced polyamide
Mounting type
Snap-in
Hole diameter in mm
0
Height in mm
35.5
Maksimum belastning i kg
0
Plate thickness, min.
1.75
Plate thickness, max.
2.2
Nettovægt
0.0179
Varekode
8302420090
Lande-/områdekode for oprindelse
DE
Long description
Flush Handles with snap-in manufactured in glass fiber reinforced polyamide. The height is 35,5mm and the width is 93mm, the plate thickness range for mounting is 1,75-2,2mm. We can deliver a wide range of products on request. Please contact us for more information..
