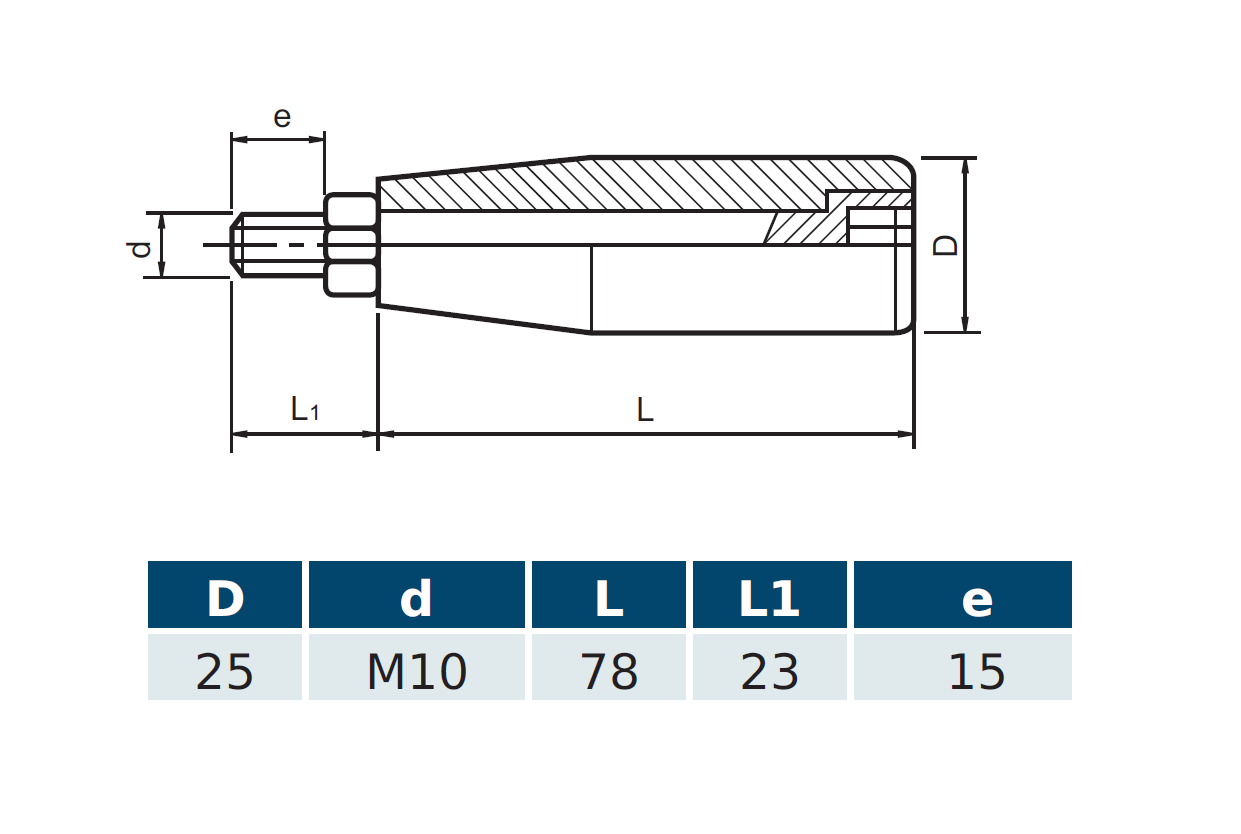

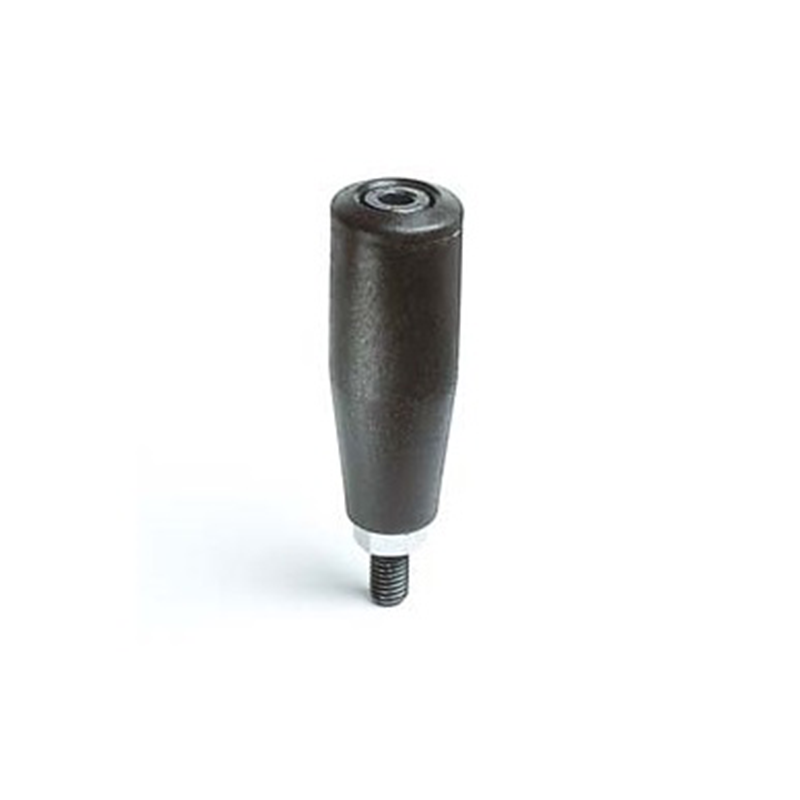

Conical knob, glass fiber reinforced polyamide, male thread M10, D=25mm, H=78mm
MT111504
Conical knob in glass fiber reinforced polyamide with male thread M10. The diameter is 25mm and the height is 78mm. We can deliver a wide range of products on request. Please contact us for more information.
d1
0
Colour
Black
Thread material
Steel
Tread size
M10
Thread type
Male thread
Material type
Glass fiber reinforced polyamide
Surface finish
Electro zinc plated
Diameter in mm
25
Thread length in mm
15
Height in mm
78
Long description
Conical knob in glass fiber reinforced polyamide with male thread M10. The diameter is 25mm and the height is 78mm. We can deliver a wide range of products on request. Please contact us for more information.
