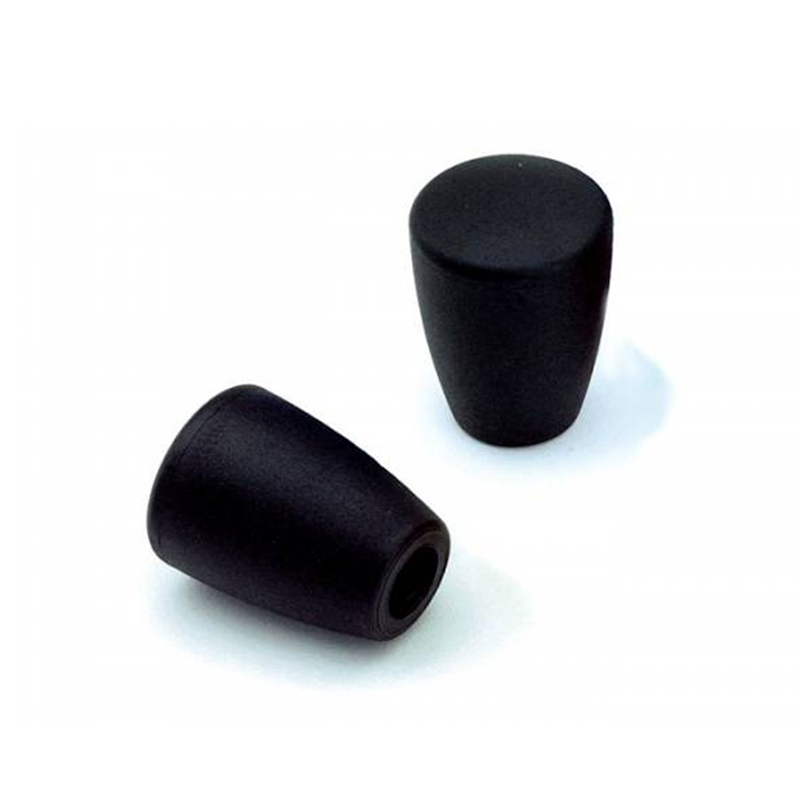

Conical knobs, glass fiber reinforced polyamide, female thread M6, D=25mm, H=34mm
MT106315
Conical knobs in glass fiber reinforced polyamide with female die-cast thread M6. The diameter is 25mm and the height is 34mm. We can deliver a wide range of products on request. Please contact us for more information.

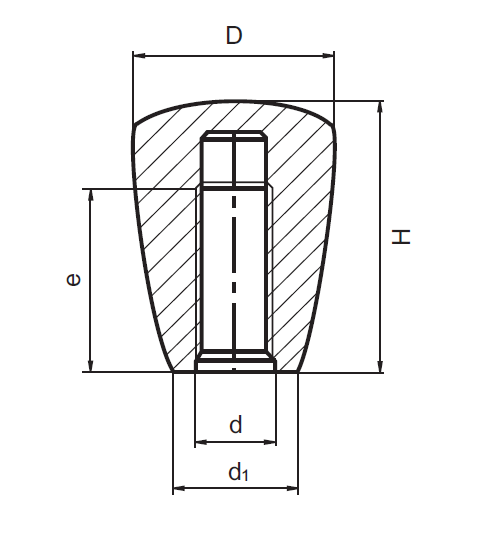

d1
16
Revolving
Nej
Colour
Black
Tread size
M6
Thread type
Female thread
Material type
Glass fiber reinforced polyamide
Type
Conical knob
Diameter in mm
25
Thread length in mm
22
Height in mm
34
Long description
Conical knobs in glass fiber reinforced polyamide with female die-cast thread M6. The diameter is 25mm and the height is 34mm. We can deliver a wide range of products on request. Please contact us for more information.
