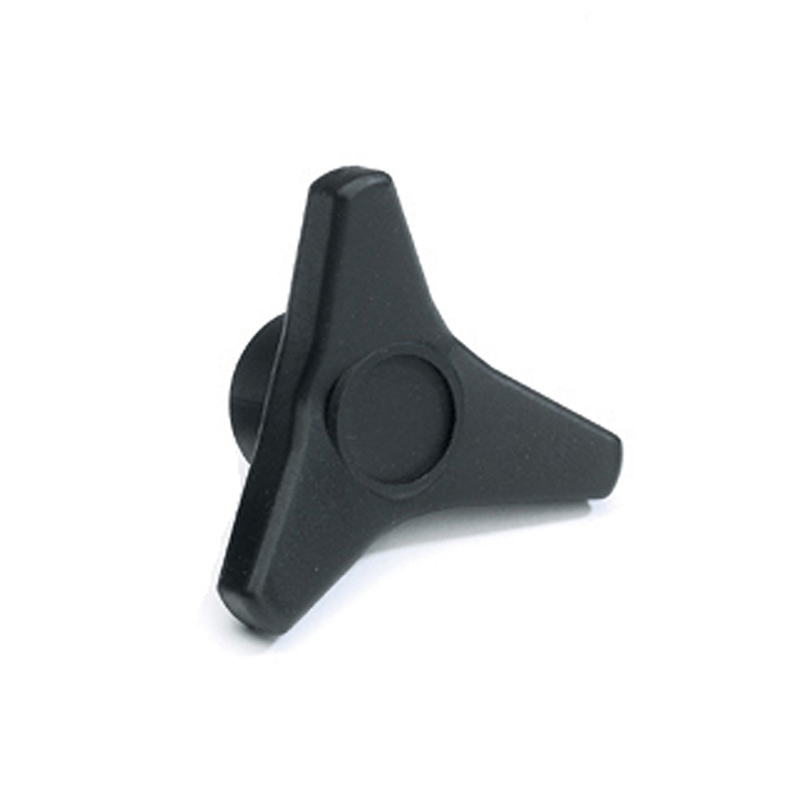

Star Knob, glass fiber reinforced polyamide, female thread M12, D=105 mm, H=45mm
MT106310
Star Knob in glass fiber reinforced polyamide with female thread M12. The diameter is 105 mm and the height is 45mm. We can deliver a wide range of products on request. Please contact us for more information.

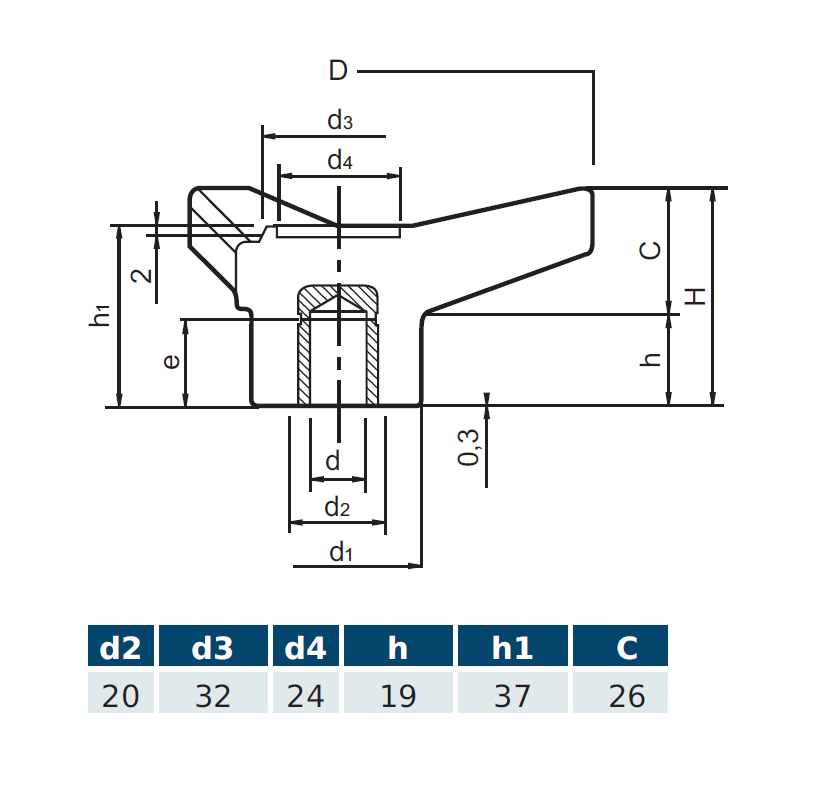

d1
35
Colour
Black
Thread material
Brass
Tread size
M12
Thread type
Female thread
Material type
Glass fiber reinforced polyamide
Diameter in mm
105
Thread length in mm
17
Height in mm
45
Long description
Star Knob in glass fiber reinforced polyamide with female thread M12. The diameter is 105 mm and the height is 45mm. We can deliver a wide range of products on request. Please contact us for more information.
