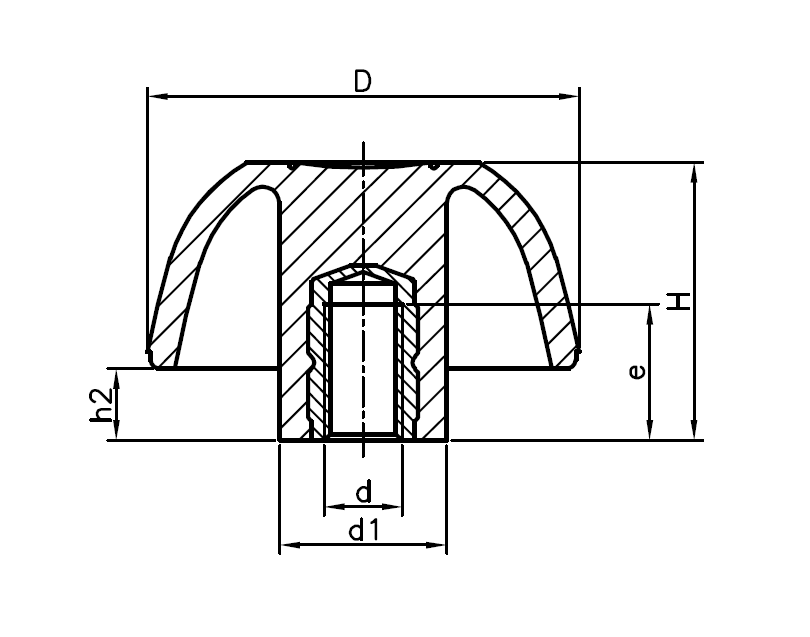

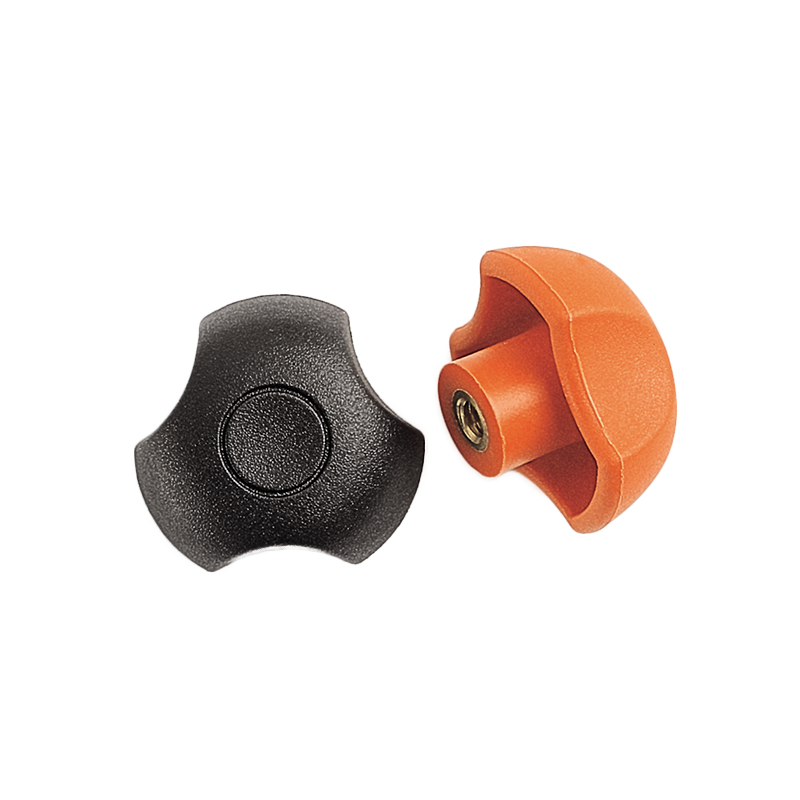

Star Knob, glass fiber reinforced polyamide, female thread M4, D=25 mm, H=17mm
MT103895
Star Knob in glass fiber reinforced polyamide with female thread M4. The diameter is 25 mm and the height is 17mm. We can deliver a wide range of products on request. Please contact us for more information.
d1
12
Colour
Black
Thread material
Brass
Tread size
M4
Thread type
Female thread
h2
6
Material type
Glass fiber reinforced polyamide
Diameter in mm
25
Thread length in mm
8.5
Height in mm
17
Long description
Star Knob in glass fiber reinforced polyamide with female thread M4. The diameter is 25 mm and the height is 17mm. We can deliver a wide range of products on request. Please contact us for more information.
