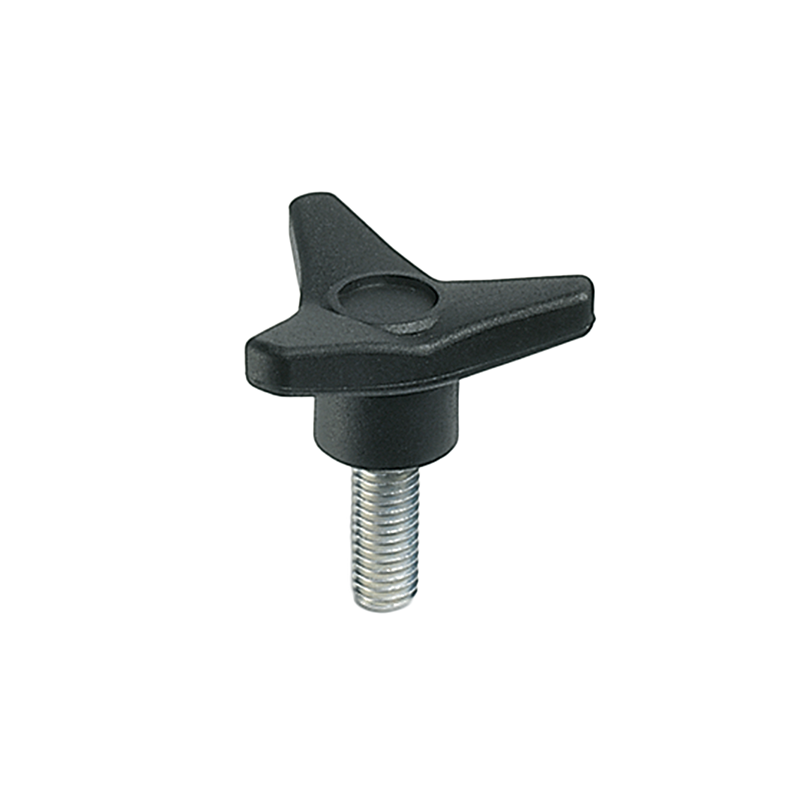

Star knob, glass fiber reinforced polyamide, male thread M10, D=85 mm, H=36mm
MT106309
Star knob in glass fiber reinforced polyamide with male thread M10. The diameter is 85 mm and the height is 36mm. We can deliver a wide range of products on request. Please contact us for more information.
d1
0
Colour
Black
Thread material
Steel
Tread size
M10
Thread type
Male thread
Material type
Glass fiber reinforced polyamide
Surface finish
Electro zinc plated

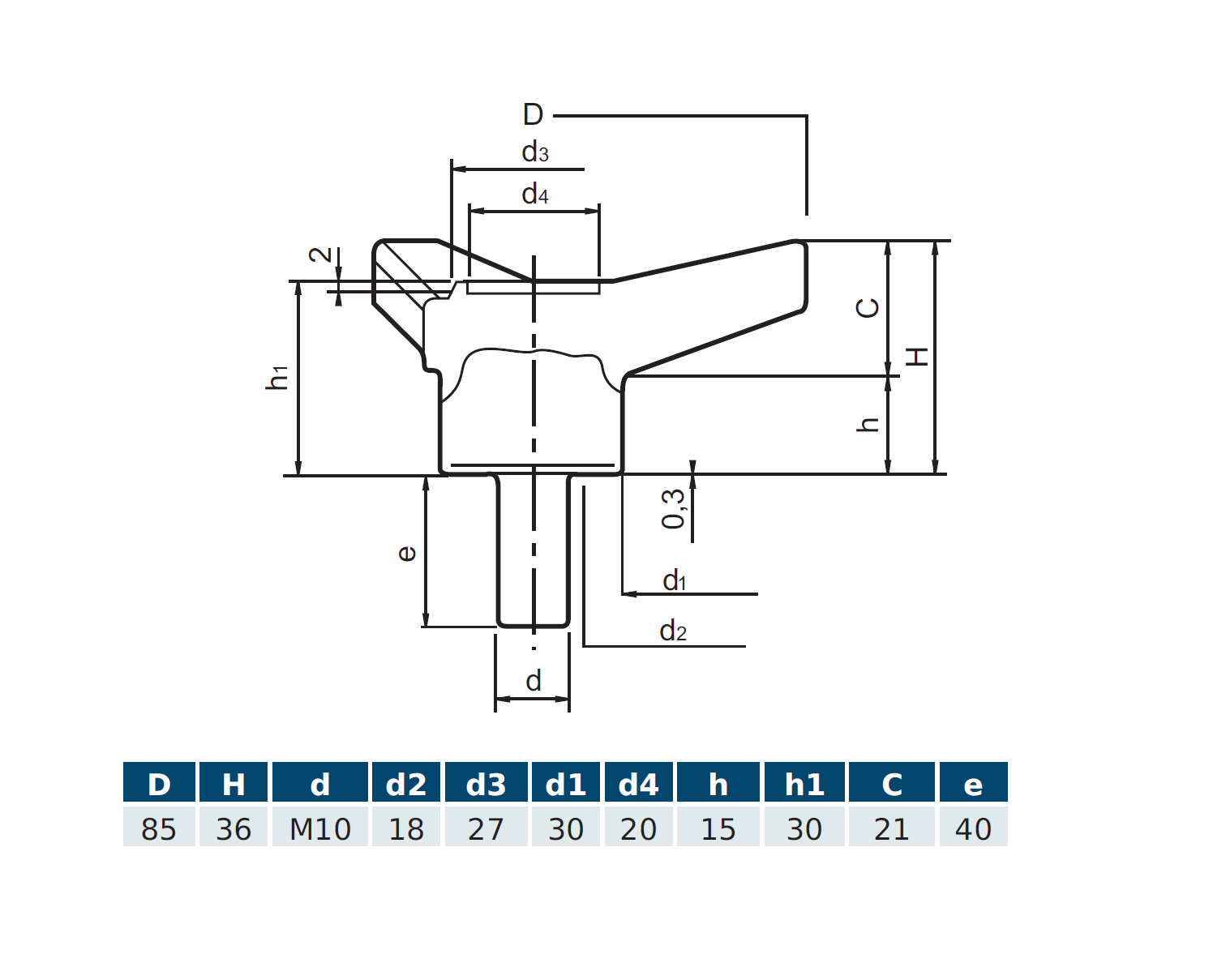

Diameter in mm
85
Thread length in mm
40
Height in mm
36
Long description
Star knob in glass fiber reinforced polyamide with male thread M10. The diameter is 85 mm and the height is 36mm. We can deliver a wide range of products on request. Please contact us for more information.
