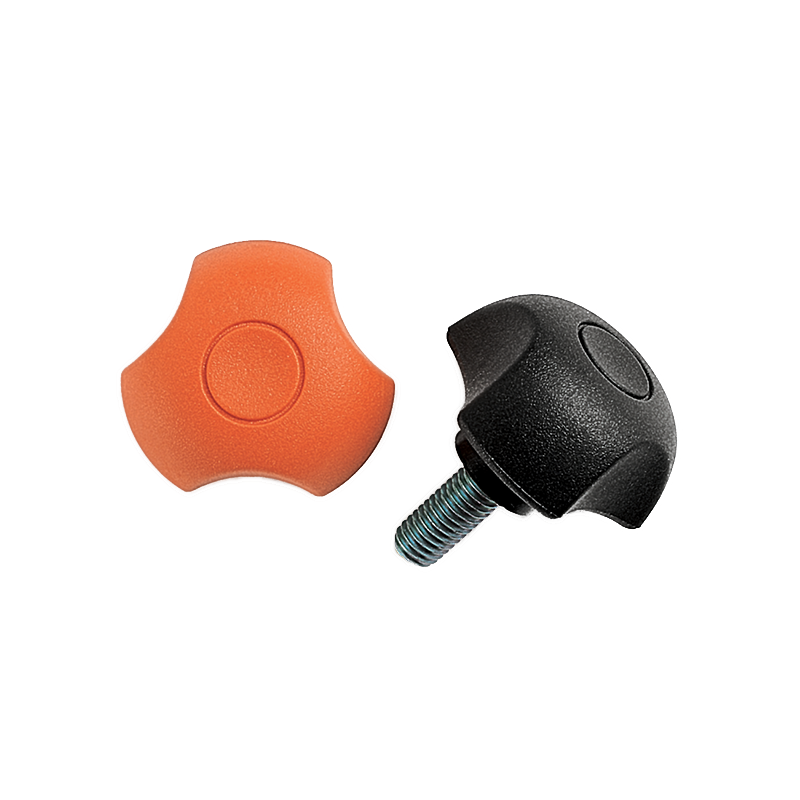

Star Knob, glass fiber reinforced polyamide, male thread M12, D=50 mm, H=32mm
MT103925
Star Knob in glass fiber reinforced polyamide with male thread M12. The diameter is 50 mm and the height is 32mm. We can deliver a wide range of products on request. Please contact us for more information.

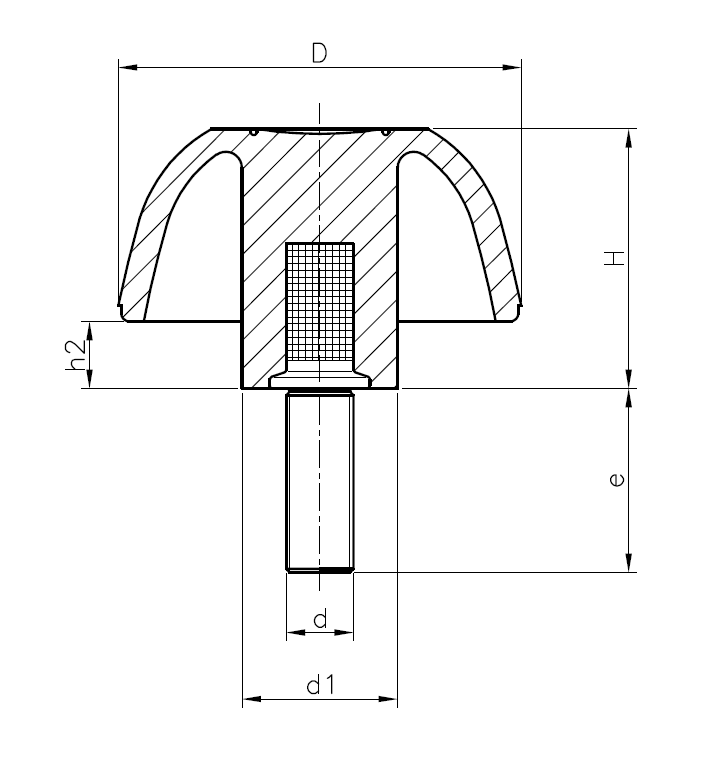

d1
19
Colour
Black
Thread material
Steel
Tread size
M12
Thread type
Male thread
h2
8
Material type
Glass fiber reinforced polyamide
Surface finish
Electro zinc plated
Diameter in mm
50
Thread length in mm
60
Height in mm
32
Long description
Star Knob in glass fiber reinforced polyamide with male thread M12. The diameter is 50 mm and the height is 32mm. We can deliver a wide range of products on request. Please contact us for more information.
