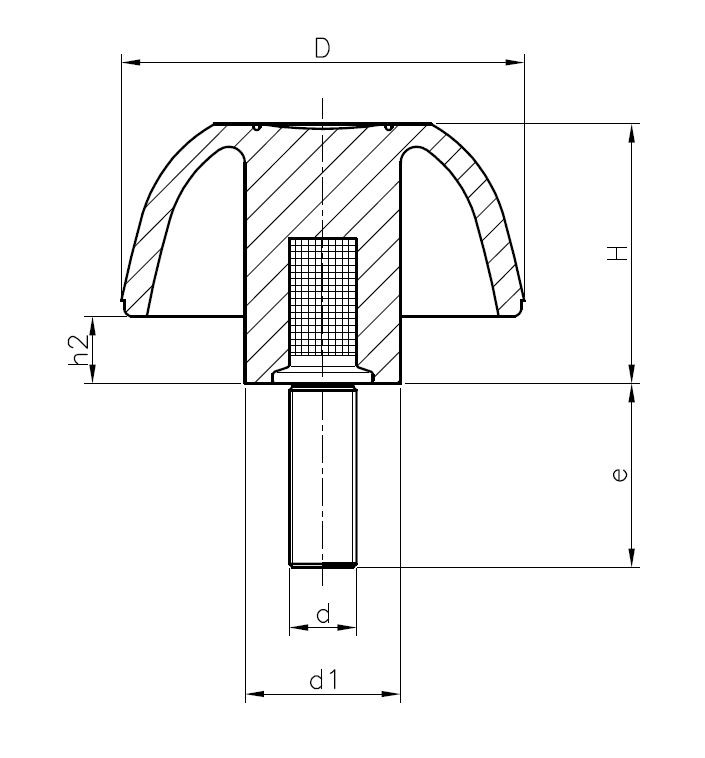

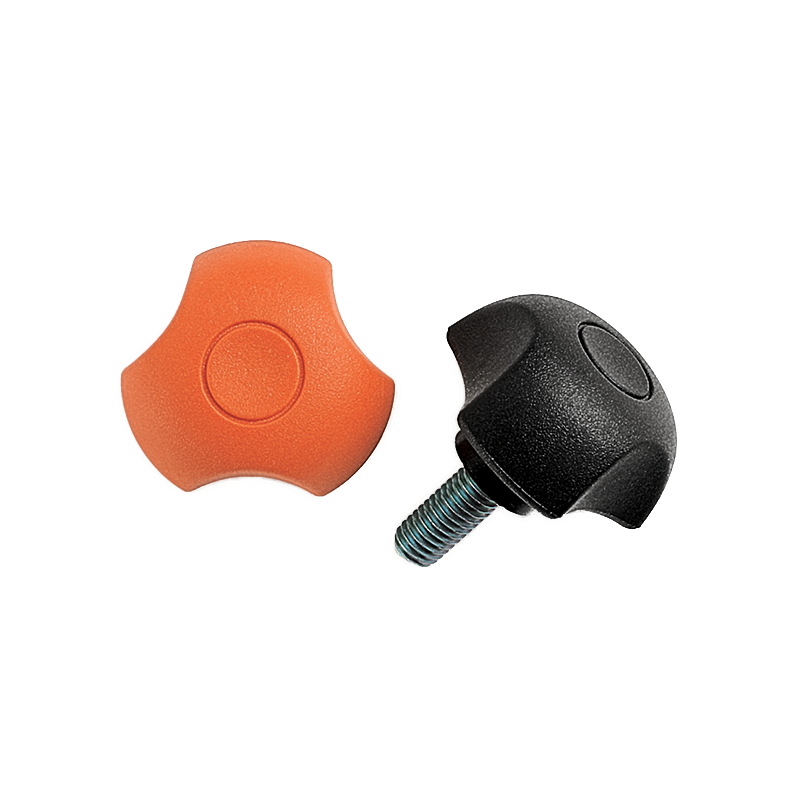

Star Knob, glass fiber reinforced polyamide, male thread M5, D=25 mm, H=17mm
MT103898
Star Knob in glass fiber reinforced polyamide with male thread M5. The diameter is 25 mm and the height is 17mm. We can deliver a wide range of products on request. Please contact us for more information.
d1
12
Colour
Black
Thread material
Steel
Tread size
M5
Thread type
Male thread
h2
6
Material type
Glass fiber reinforced polyamide
Surface finish
Electro zinc plated
Diameter in mm
25
Thread length in mm
20
Height in mm
17
Long description
Star Knob in glass fiber reinforced polyamide with male thread M5. The diameter is 25 mm and the height is 17mm. We can deliver a wide range of products on request. Please contact us for more information.
