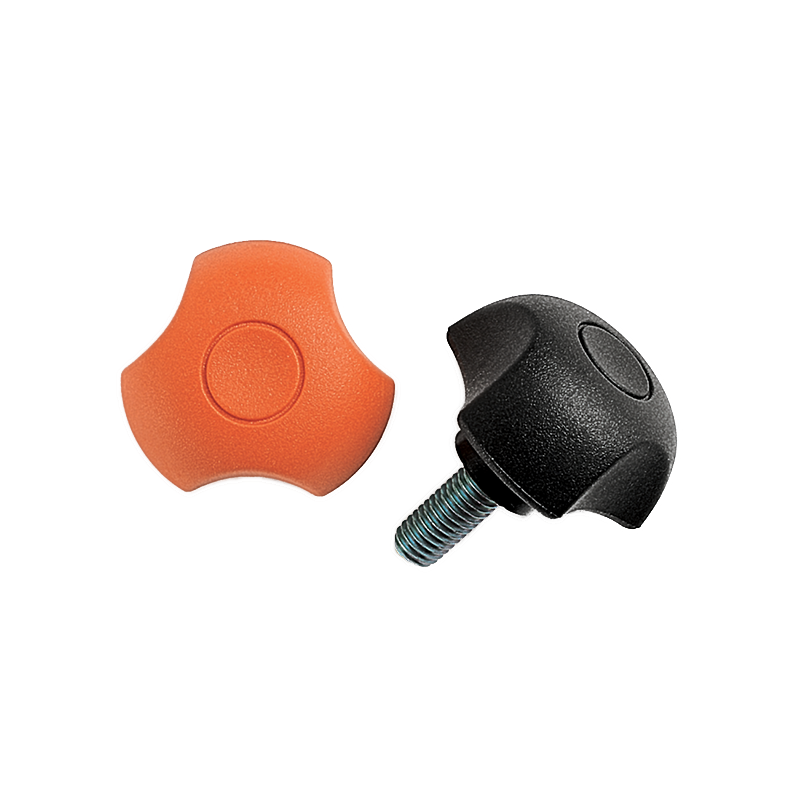

Star Knob, glass fiber reinforced polyamide, male thread M8, D=40 mm, H=25mm
MT103910
Star Knob in glass fiber reinforced polyamide with male thread M8. The diameter is 40 mm and the height is 25mm. We can deliver a wide range of products on request. Please contact us for more information.

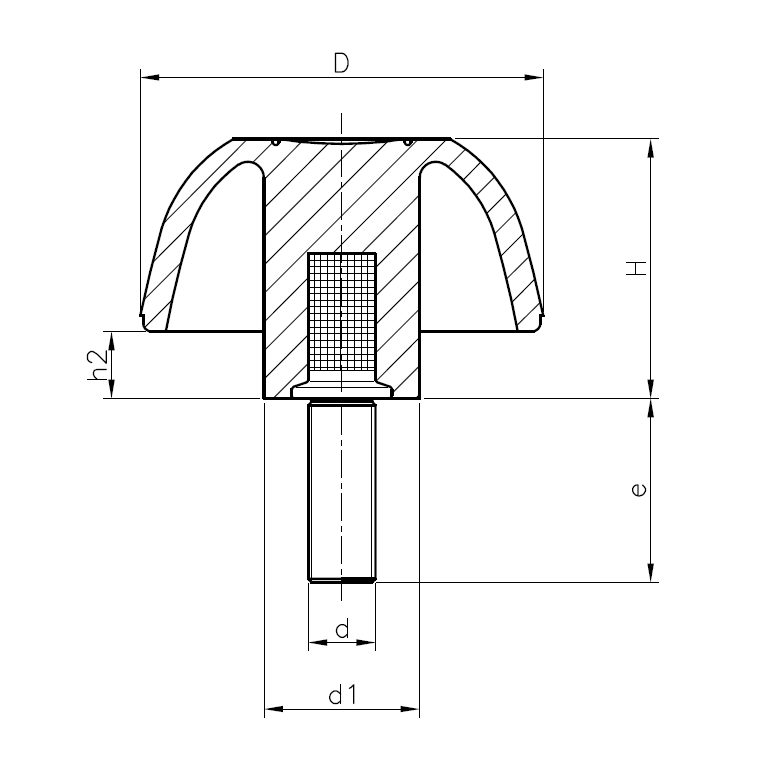

d1
17
Colour
Black
Thread material
Steel
Tread size
M8
Thread type
Male thread
h2
7
Material type
Glass fiber reinforced polyamide
Surface finish
Electro zinc plated
Diameter in mm
40
Gevindlængde i mm
20
Height in mm
25
Nettovægt
0
Varekode
3925901000
Lande-/områdekode for oprindelse
ES
Long description
Star Knob in glass fiber reinforced polyamide with male thread M8. The diameter is 40 mm and the height is 25mm. We can deliver a wide range of products on request. Please contact us for more information.
