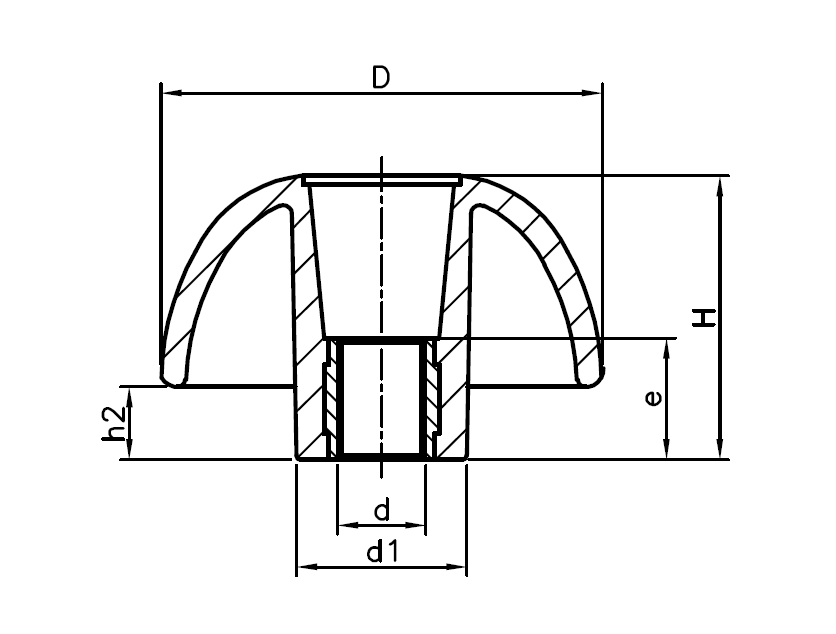

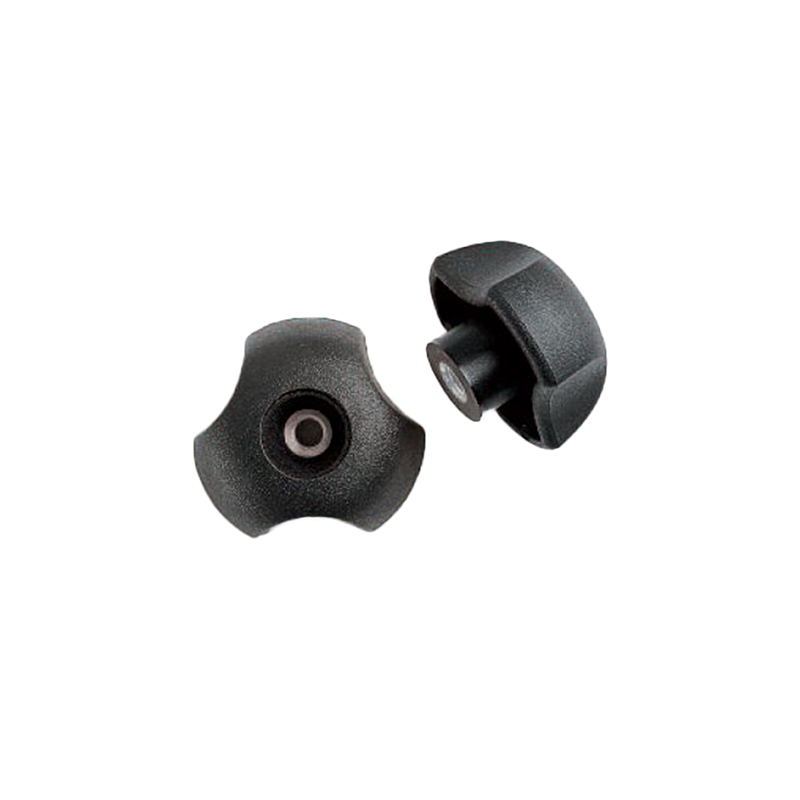

Star knob, glass fiber reinforced polyamide, through thread M8, D=40 mm, H=25mm
MT103908
Star knob in glass fiber reinforced polyamide with through thread M8. The diameter is 40 mm and the height is 25mm. We can deliver a wide range of products on request. Please contact us for more information.
d1
17
Colour
Black
Thread material
Brass
Tread size
M8
Thread type
Through thread
h2
7
Material type
Glass fiber reinforced polyamide
Diameter in mm
40
Thread length in mm
13.8
Height in mm
25
Long description
Star knob in glass fiber reinforced polyamide with through thread M8. The diameter is 40 mm and the height is 25mm. We can deliver a wide range of products on request. Please contact us for more information.
