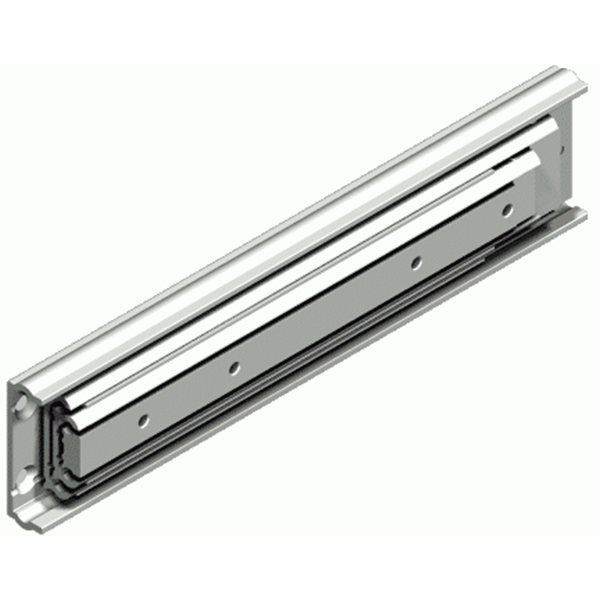

Drawer Slide, steel, extension lenght =1070 mm and load capacity of 98 kg
MT110640
Drawer Slide in steel and over extension type with an extension length of 1070mm. The load capacity is 98kg/pair. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
No
Material type
Steel
Surface finish
Electro zinc plated
Type
Over extension
Load capacity in kg
98
Height in mm
68
Length in mm
700
Extension length in mm
1070
Long description
Drawer Slide in steel and over extension type with an extension length of 1070mm. The load capacity is 98kg/pair. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for more information.
