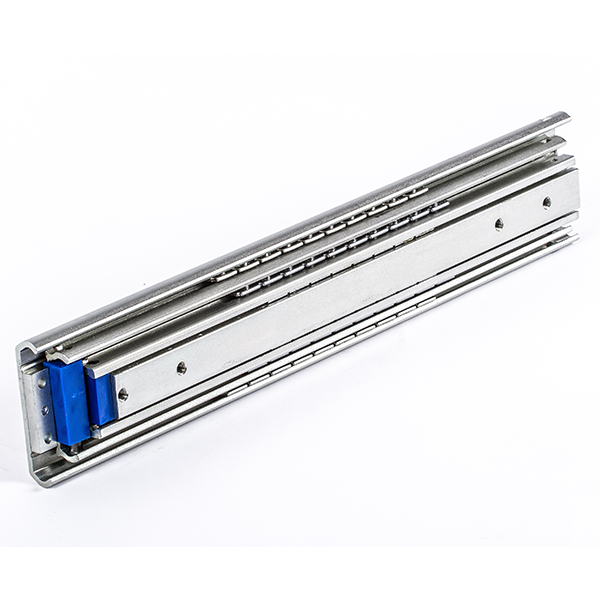

Drawer Slide, steel, extension lenght =1230 mm and load capacity of 182 kg
MT110688
Drawer Slide in steel and over extension type with an extension length of 1230mm. The load capacity is 182kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mo
Detachable
No
Material type
Steel
Surface finish
Electro zinc plated
Type
Over extension
Load capacity in kg
182
Height in mm
93
Length in mm
800
Extension length in mm
1230
Long description
Drawer Slide in steel and over extension type with an extension length of 1230mm. The load capacity is 182kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mo
