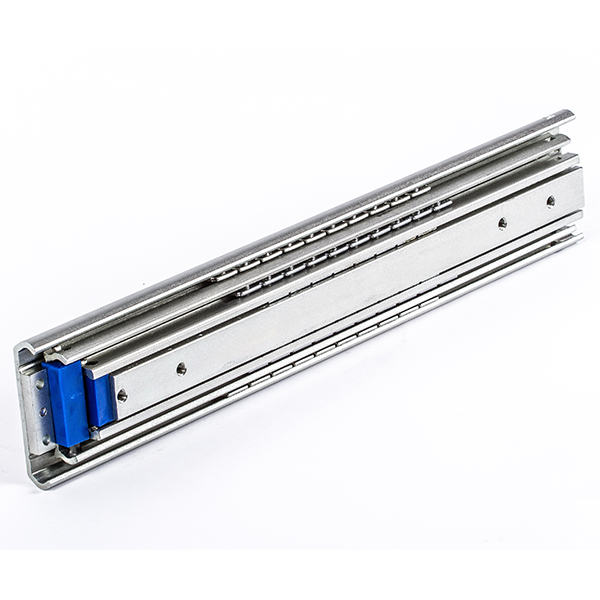

Drawer Slide, steel, extension lenght =1300 mm and load capacity of 170 kg
MT110689
Drawer Slide in steel and over extension type with an extension length of 1300mm. The load capacity is 170kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mo
Detachable
No
Material type
Steel
Surface finish
Electro zinc plated
Type
Over extension
Load capacity in kg
170
Height in mm
93
Length in mm
850
Extension length in mm
1300
Long description
Drawer Slide in steel and over extension type with an extension length of 1300mm. The load capacity is 170kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mo
