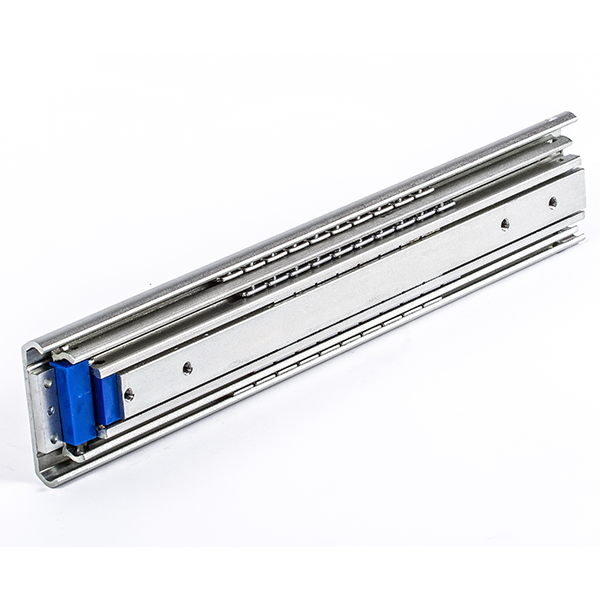

Drawer Slide, steel, extension lenght =540 mm and load capacity of 207 kg
MT110679
Drawer Slide in steel and over extension type with an extension length of 540mm. The load capacity is 207kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mor
Detachable
No
Material type
Steel
Surface finish
Electro zinc plated
Type
Over extension
Load capacity in kg
207
Height in mm
93
Length in mm
350
Extension length in mm
540
Long description
Drawer Slide in steel and over extension type with an extension length of 540mm. The load capacity is 207kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mor
