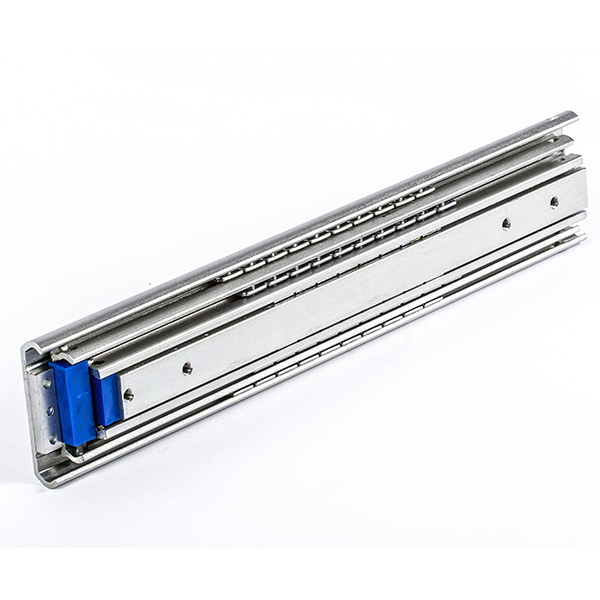

Drawer Slide, steel, extension lenght =770 mm and load capacity of 228 kg
MT110682
Drawer Slide in steel and over extension type with an extension length of 770mm. The load capacity is 228kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mor
Detachable
No
Material type
Steel
Surface finish
Electro zinc plated
Type
Over extension
Bæreevne i kg
228
Height in mm
93
Length i mm
500
Udtrækslængde i mm
770
Long description
Drawer Slide in steel and over extension type with an extension length of 770mm. The load capacity is 228kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mor
