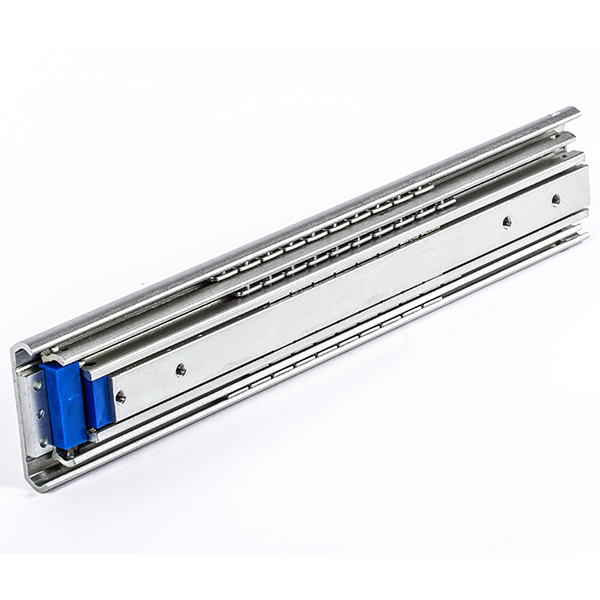

Drawer Slide, steel, extension lenght =840 mm and load capacity of 224 kg
MT110683
Drawer Slide in steel and over extension type with an extension length of 840mm. The load capacity is 224kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mor
Detachable
No
Material type
Steel
Surface finish
Electro zinc plated
Type
Over extension
Load capacity in kg
224
Height in mm
93
Length in mm
550
Extension length in mm
840
Long description
Drawer Slide in steel and over extension type with an extension length of 840mm. The load capacity is 224kg/pair. Synchronized slide. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for mor
