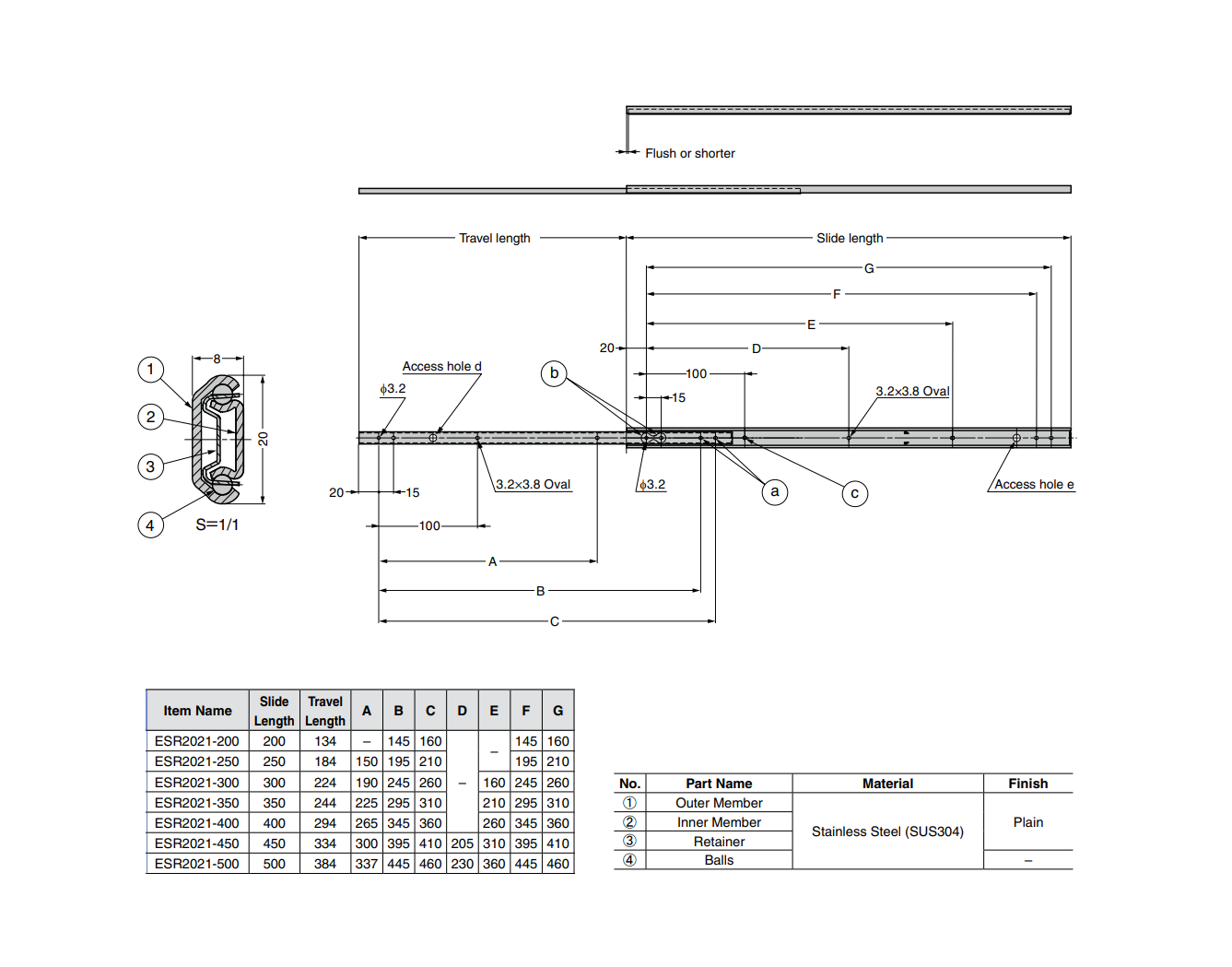

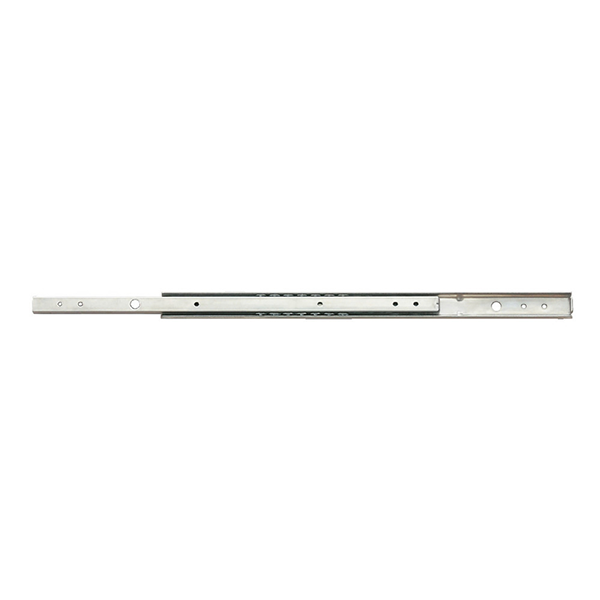

Drawer Slide, stainless steel, extension lenght =224 mm and load capacity of 16 kg
MT109767
Drawer Slide in stainless steel and partial extension type with an extension length of 224mm. The load capacity is 16kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
No
Material type
Stainless steel
Type
Partial extension
Bæreevne i kg
16
Height in mm
20
Length i mm
300
Udtrækslængde i mm
224
Nettovægt
0.15
Varekode
8302490099
Lande-/områdekode for oprindelse
JP
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 224mm. The load capacity is 16kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
