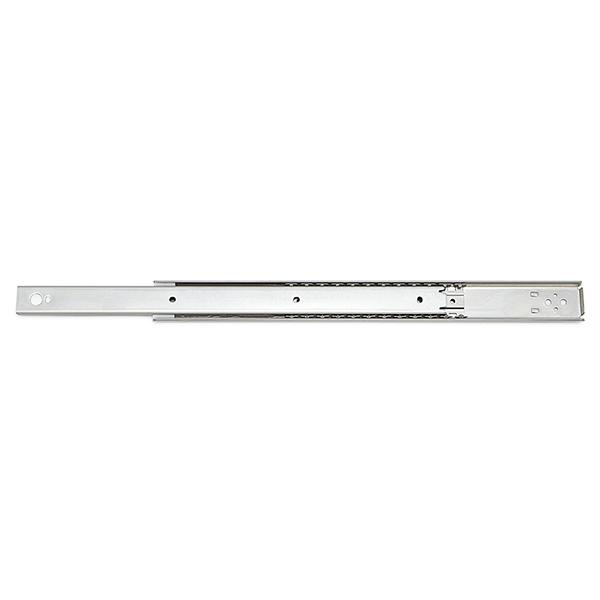

Drawer Slide, stainless steel, extension lenght =279,4 mm and load capacity of 47 kg
MT109757
Drawer Slide in stainless steel and partial extension type with an extension length of 279,4mm. The load capacity is 47kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Bæreevne i kg
47
Height in mm
35.4
Length i mm
355.6
Udtrækslængde i mm
279.4
Nettovægt
0.37
Varekode
8302490099
Lande-/områdekode for oprindelse
JP
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 279,4mm. The load capacity is 47kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
