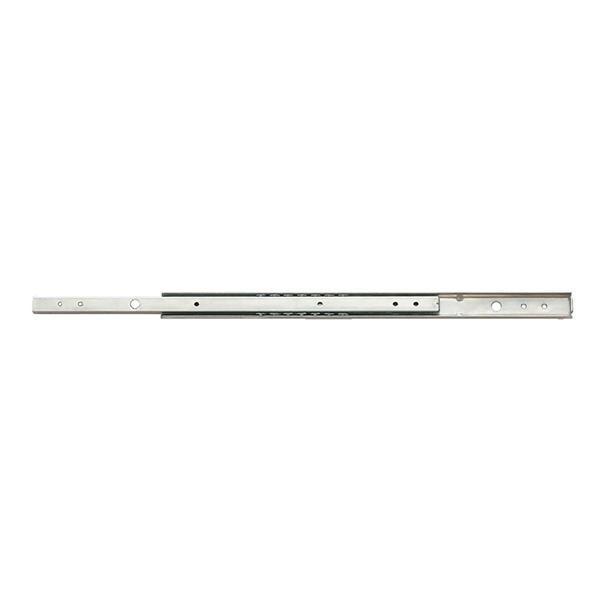

Drawer Slide, stainless steel, extension lenght =294 mm and load capacity of 15 kg
MT109769
Drawer Slide in stainless steel and partial extension type with an extension length of 294mm. The load capacity is 15kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
No
Material type
Stainless steel
Type
Partial extension
Load capacity in kg
15
Height in mm
20
Length in mm
400
Extension length in mm
294
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 294mm. The load capacity is 15kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
