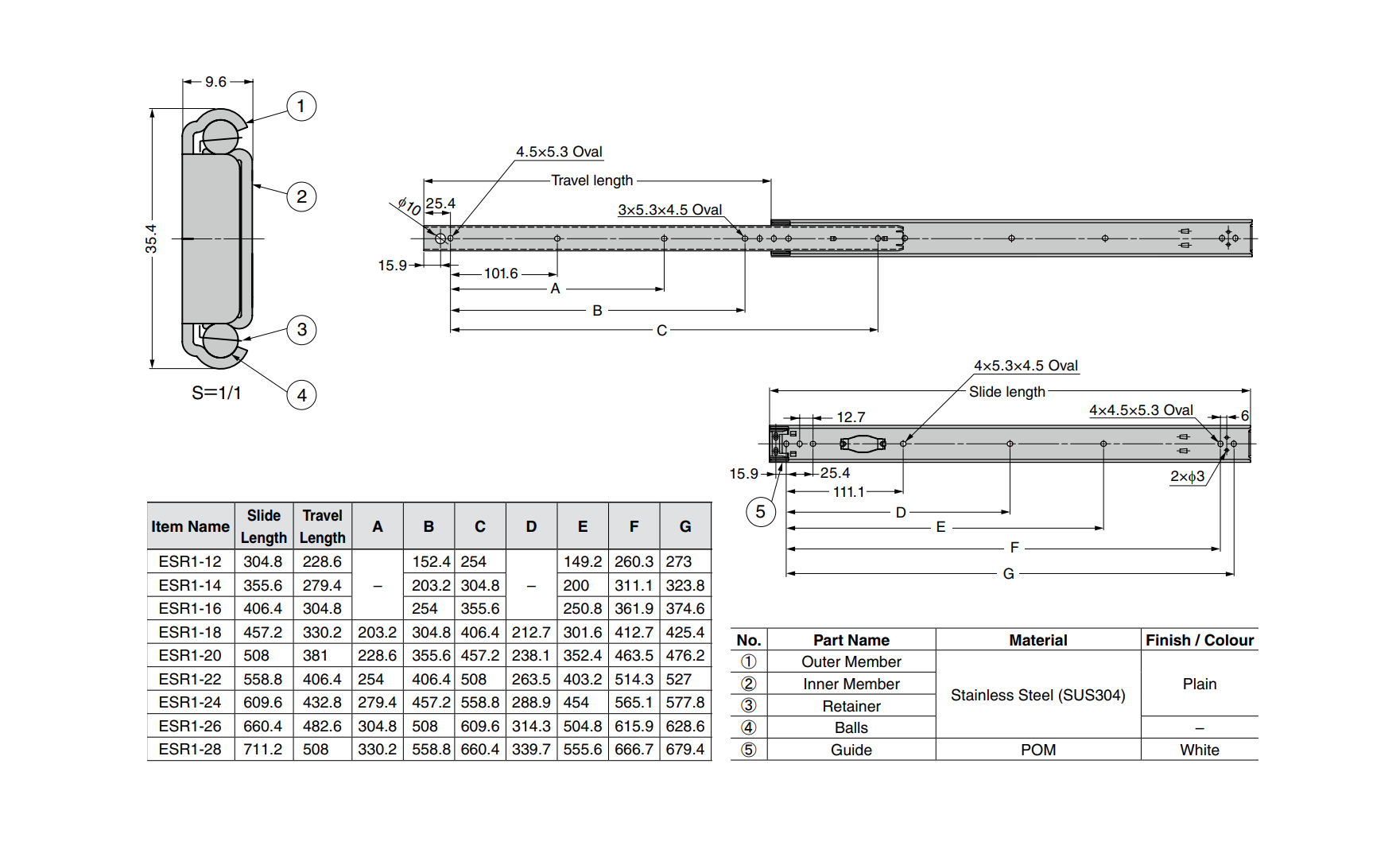

Drawer Slide, stainless steel, extension lenght =304,8 mm and load capacity of 43 kg
MT109758
Drawer Slide in stainless steel and partial extension type with an extension length of 304,8mm. The load capacity is 43kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Bæreevne i kg
43
Height in mm
35.4
Length i mm
406.4
Udtrækslængde i mm
304.8
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 304,8mm. The load capacity is 43kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
