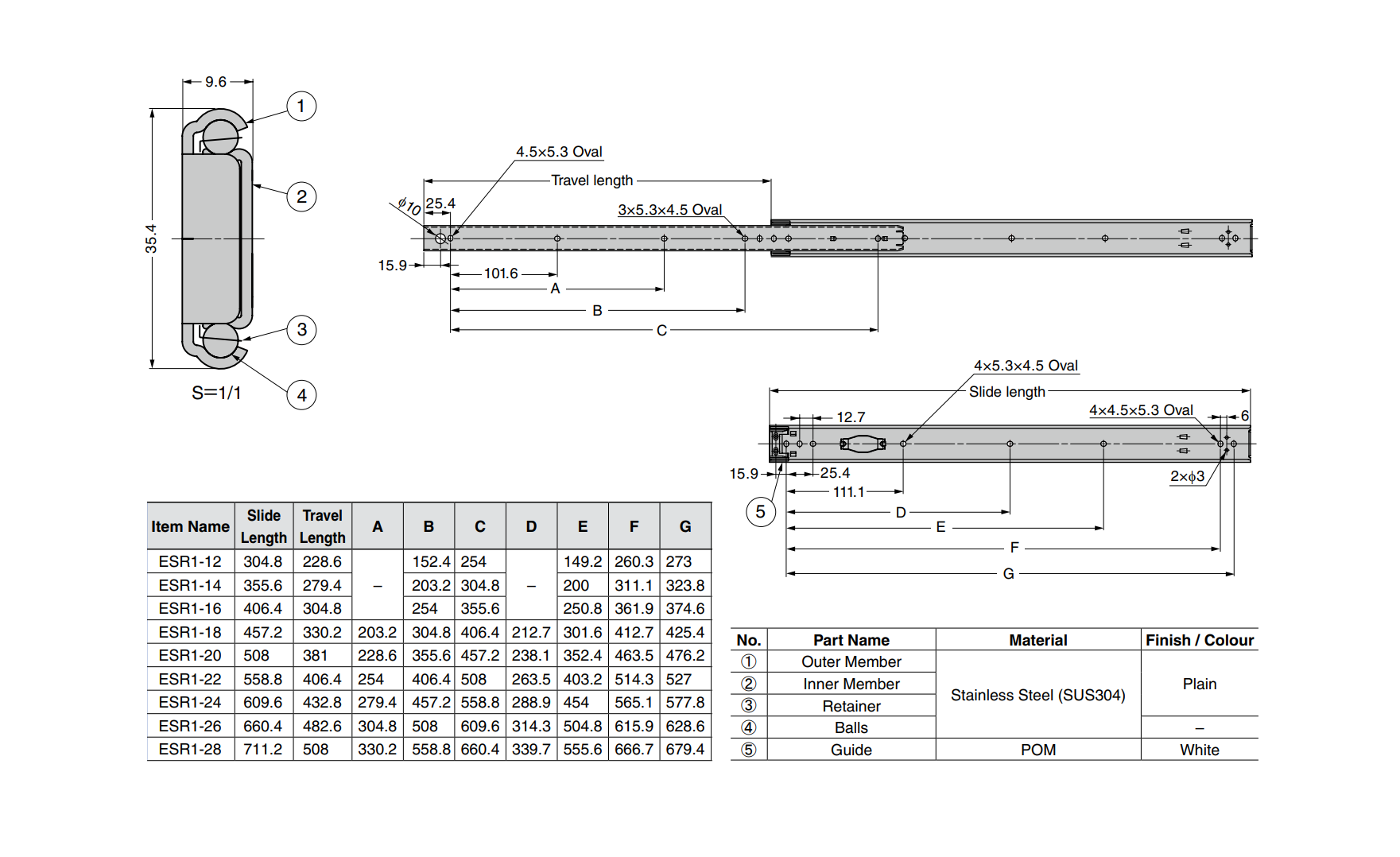

Drawer Slide, stainless steel, extension lenght =330,2 mm and load capacity of 41 kg
MT109759
Drawer Slide in stainless steel and partial extension type with an extension length of 330,2mm. The load capacity is 41kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Load capacity in kg
41
Height in mm
35.4
Length in mm
457.2
Extension length in mm
330.2
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 330,2mm. The load capacity is 41kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
