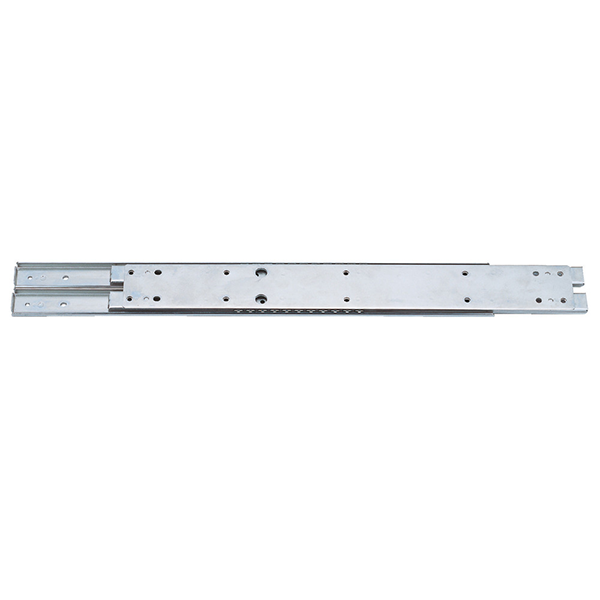

Drawer Slide, stainless steel, extension lenght =361,5 mm and load capacity of 99 kg
MT109803
Drawer Slide in stainless steel and partial extension type with an extension length of 361,5mm. The load capacity is 99kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
No
Material type
Stainless steel
Surface finish
Polished
Type
Partial extension
Load capacity in kg
99
Height in mm
71.3
Length in mm
508.2
Extension length in mm
361.5
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 361,5mm. The load capacity is 99kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
