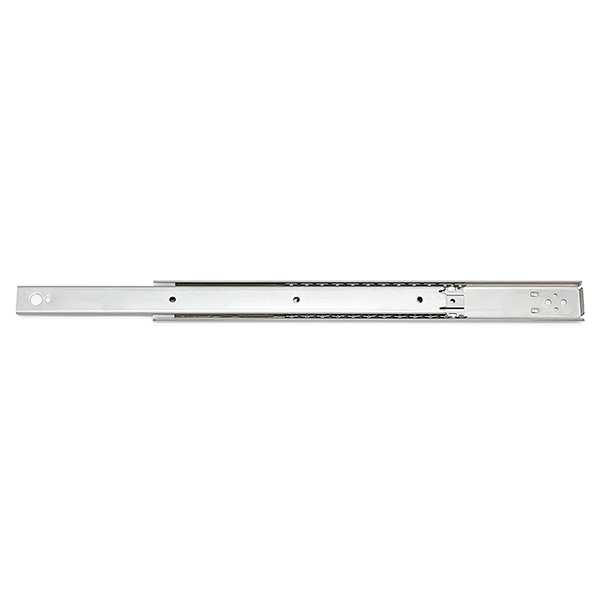

Drawer Slide, stainless steel, extension lenght =381 mm and load capacity of 37 kg
MT109760
Drawer Slide in stainless steel and partial extension type with an extension length of 381mm. The load capacity is 37kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range of
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Load capacity in kg
37
Height in mm
35.4
Length in mm
508
Extension length in mm
381
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 381mm. The load capacity is 37kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range of
