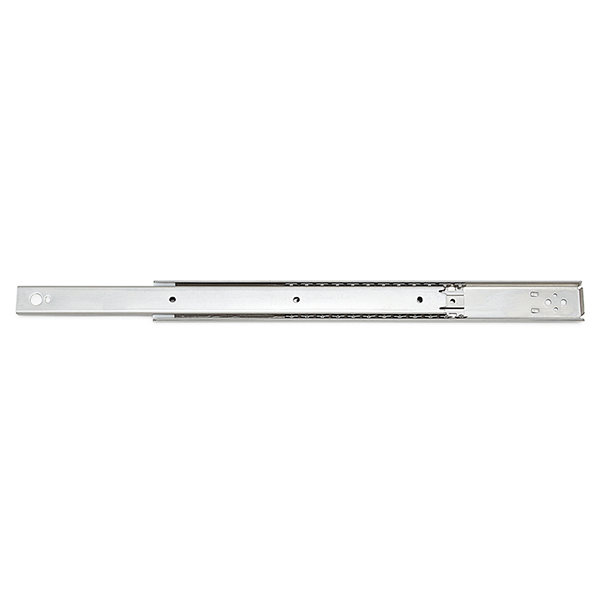

Drawer Slide, stainless steel, extension lenght =406,4 mm and load capacity of 34 kg
MT109761
Drawer Slide in stainless steel and partial extension type with an extension length of 406,4mm. The load capacity is 34kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Bæreevne i kg
34
Height in mm
35.4
Length i mm
558.8
Udtrækslængde i mm
406.4
Nettovægt
0.6
Varekode
8302490099
Lande-/områdekode for oprindelse
JP
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 406,4mm. The load capacity is 34kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
