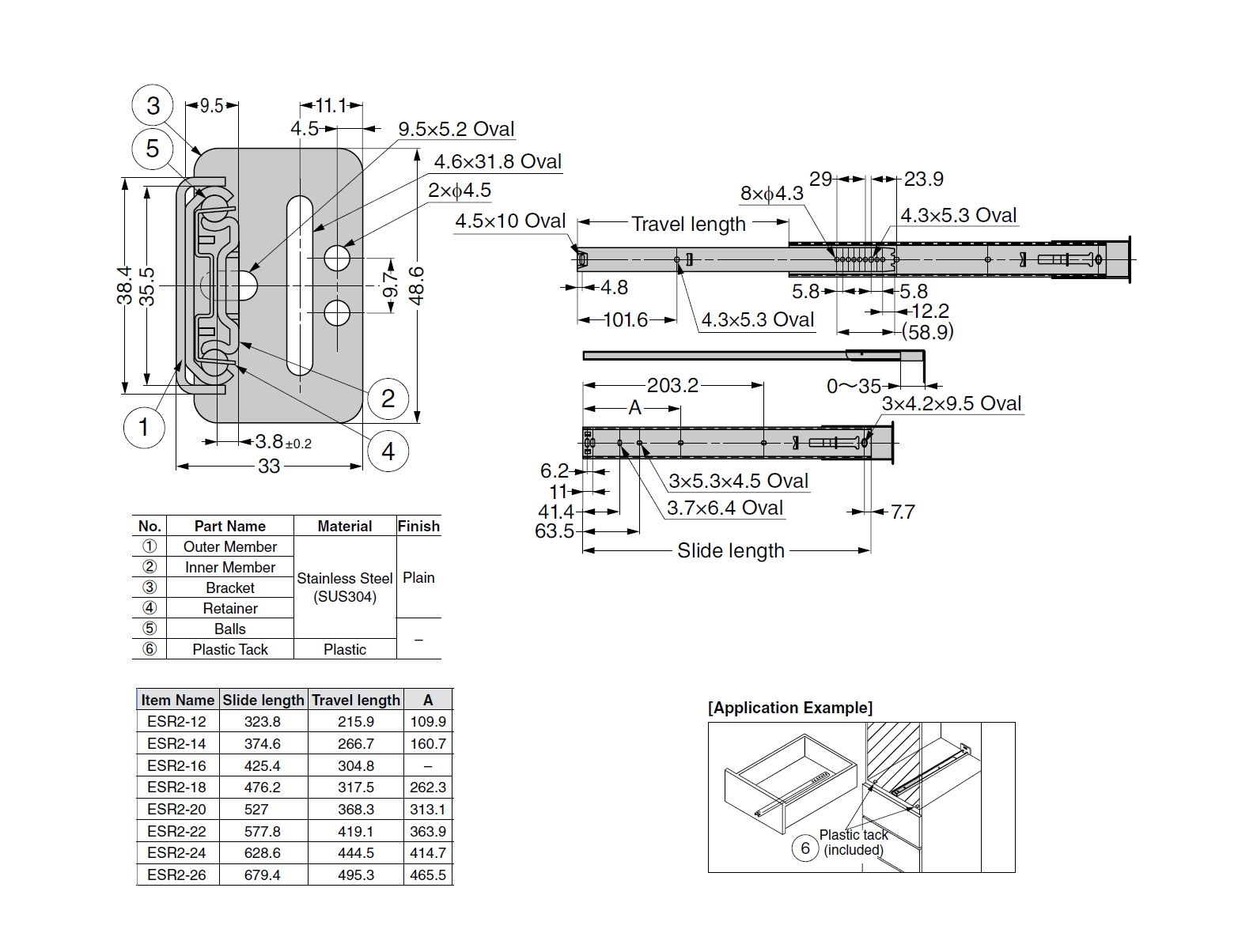

Drawer Slide, stainless steel, extension lenght =419,1 mm and load capacity of 6 kg
MT109777
Drawer Slide in stainless steel and partial extension type with an extension length of 419,1mm. The load capacity is 6kg/pair. Installed on the bottom of the drawer. The drawer can be stopped at any position by the resistance of the ball retainer. We can
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Bæreevne i kg
6
Height in mm
48.6
Length i mm
577.8
Udtrækslængde i mm
419.1
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 419,1mm. The load capacity is 6kg/pair. Installed on the bottom of the drawer. The drawer can be stopped at any position by the resistance of the ball retainer. We can
