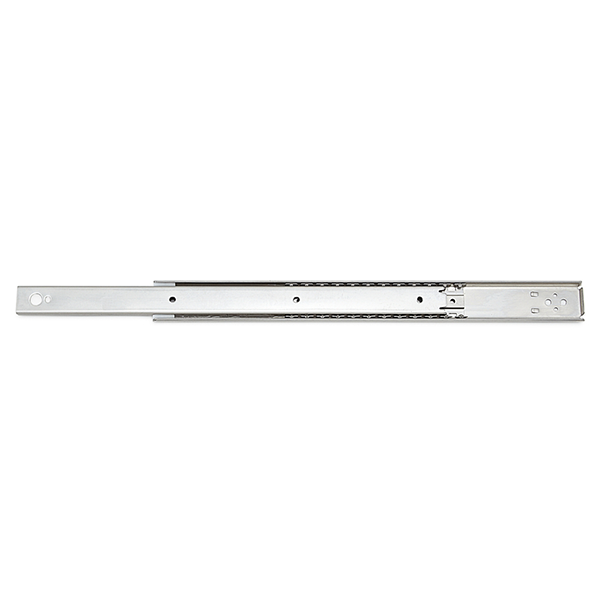

Drawer Slide, stainless steel, extension lenght =432,8 mm and load capacity of 30 kg
MT109762
Drawer Slide in stainless steel and partial extension type with an extension length of 432,8mm. The load capacity is 30kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Load capacity in kg
30
Height in mm
35.4
Length in mm
609.6
Extension length in mm
432.8
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 432,8mm. The load capacity is 30kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
