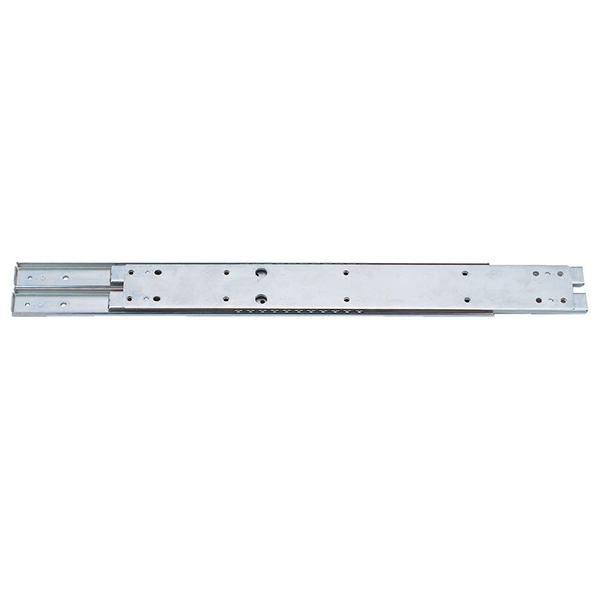

Drawer Slide, stainless steel, extension lenght =463,1 mm and load capacity of 86 kg
MT109806
Drawer Slide in stainless steel and partial extension type with an extension length of 463,1mm. The load capacity is 86kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
No
Material type
Stainless steel
Surface finish
Polished
Type
Partial extension
Bæreevne i kg
86
Height in mm
71.3
Length i mm
660.6
Udtrækslængde i mm
463.1
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 463,1mm. The load capacity is 86kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
