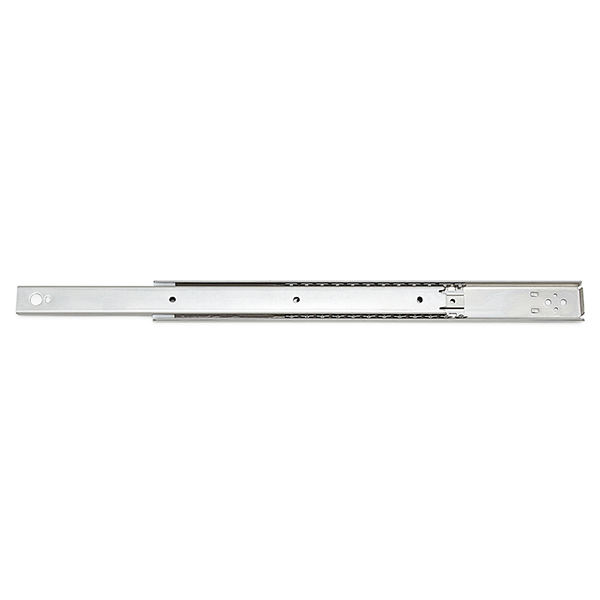

Drawer Slide, stainless steel, extension lenght =482,6 mm and load capacity of 27 kg
MT109763
Drawer Slide in stainless steel and partial extension type with an extension length of 482,6mm. The load capacity is 27kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Load capacity in kg
27
Height in mm
35.4
Length in mm
660.4
Extension length in mm
482.6
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 482,6mm. The load capacity is 27kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range
