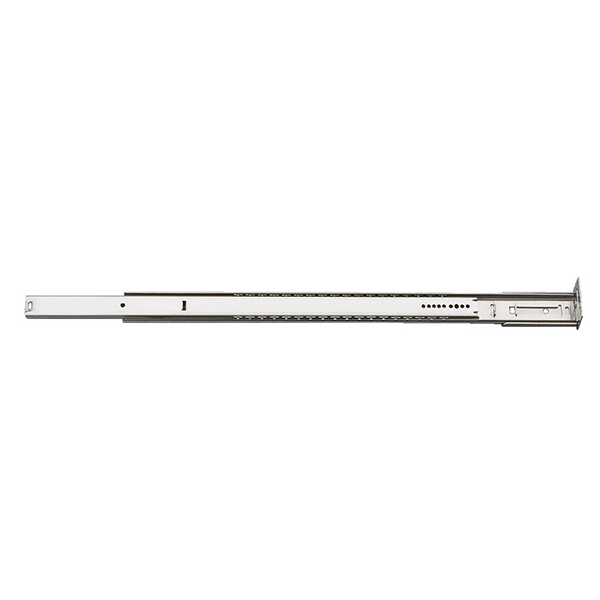

Drawer Slide, stainless steel, extension lenght =495,3 mm and load capacity of 5 kg
MT109779

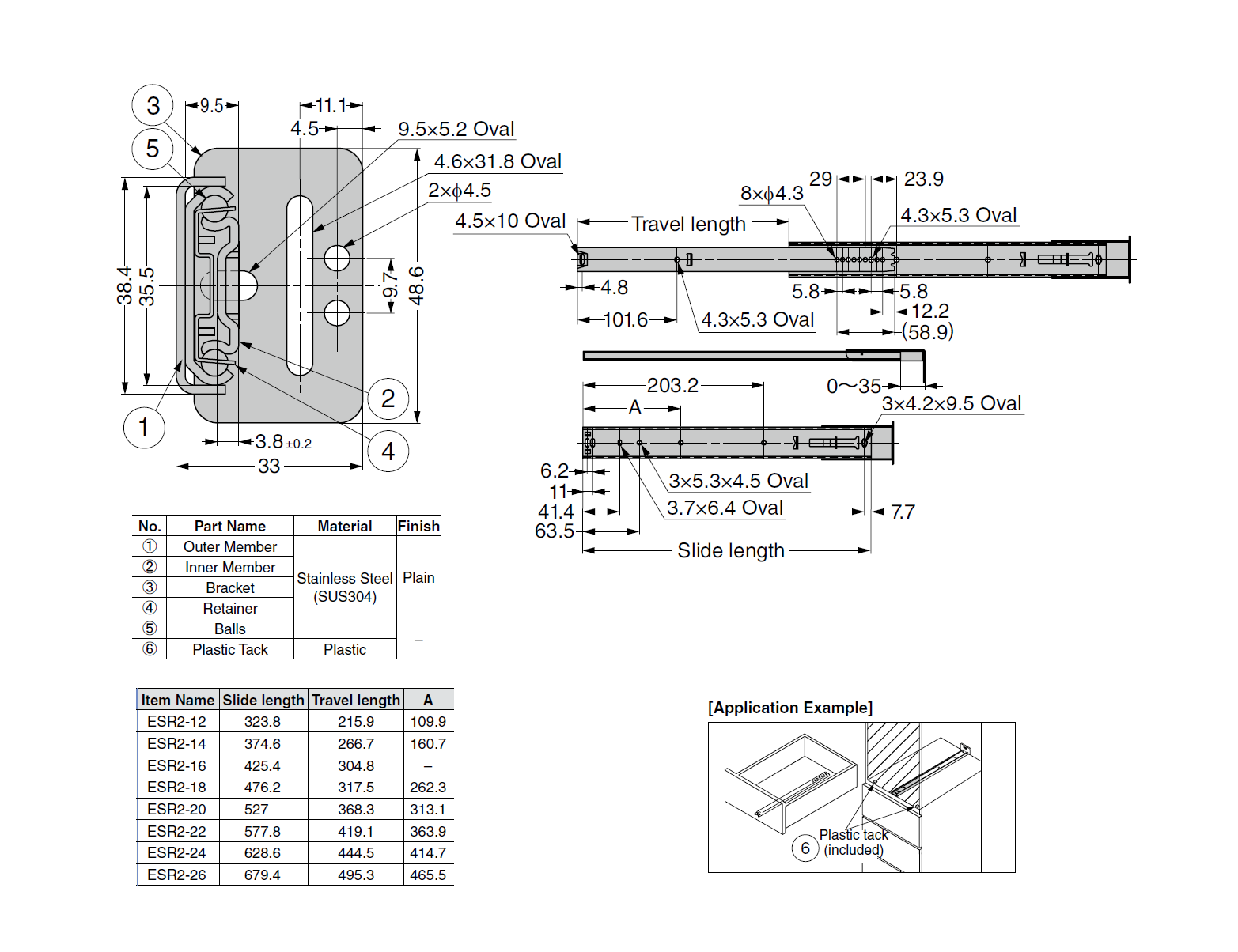

Drawer Slide in stainless steel and partial extension type with an extension length of 495,3mm. The load capacity is 5kg/pair. Installed on the bottom of the drawer. The drawer can be stopped at any position by the resistance of the ball retainer. We can
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Bæreevne i kg
5
Height in mm
48.6
Length i mm
679.4
Udtrækslængde i mm
495.3
Nettovægt
0.71
Varekode
8302490099
Lande-/områdekode for oprindelse
JP
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 495,3mm. The load capacity is 5kg/pair. Installed on the bottom of the drawer. The drawer can be stopped at any position by the resistance of the ball retainer. We can
