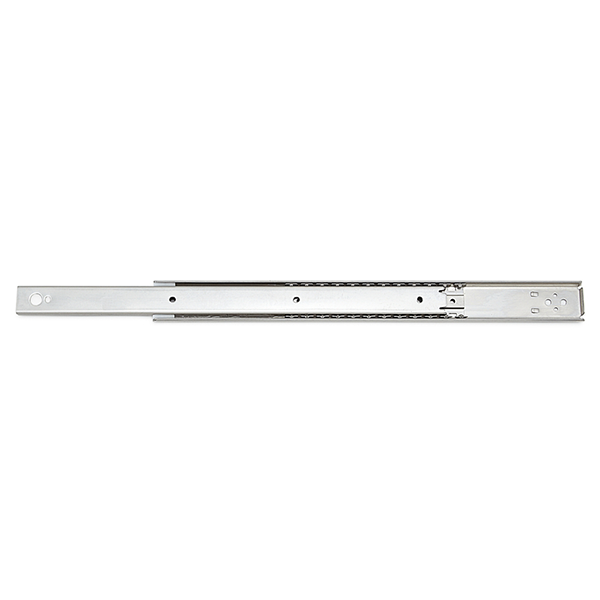

Drawer Slide, stainless steel, extension lenght =508 mm and load capacity of 25 kg
MT109764
Drawer Slide in stainless steel and partial extension type with an extension length of 508mm. The load capacity is 25kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range of
Detachable
Yes
Material type
Stainless steel
Type
Partial extension
Load capacity in kg
25
Height in mm
35.4
Length in mm
711.2
Extension length in mm
508
Long description
Drawer Slide in stainless steel and partial extension type with an extension length of 508mm. The load capacity is 25kg/pair. The drawer can be stopped at any position by the resistance of the ball retainer. RoHS 2 approved. We can deliver a wide range of
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
