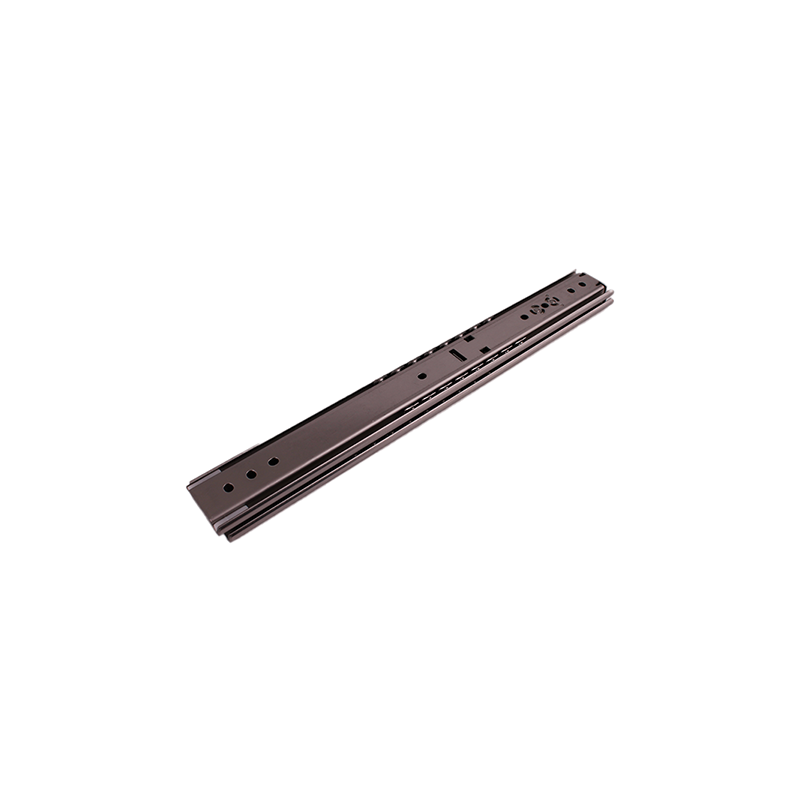

Drawer Slide, stainless steel, extension lenght =386,8 mm and load capacity of 63,5 kg
MT109809
Drawer Slide in stainless steel and total extension type with an extension length of 386,8mm. The load capacity is 63,5kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
Yes
Locking type
Lock out
Material type
Stainless steel
Type
Total extension
Load capacity in kg
63.5
Height in mm
35.4
Length in mm
355.6
Extension length in mm
386.8
Long description
Drawer Slide in stainless steel and total extension type with an extension length of 386,8mm. The load capacity is 63,5kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
