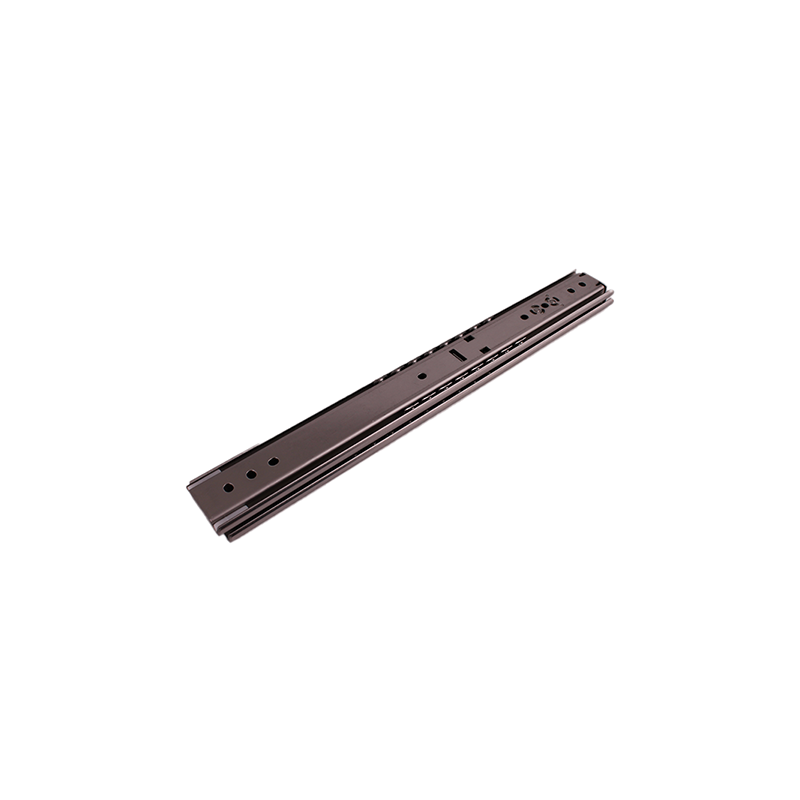

Drawer Slide, stainless steel, extension lenght =691,6 mm and load capacity of 39 kg
MT109815
Drawer Slide in stainless steel and total extension type with an extension length of 691,6mm. The load capacity is 39kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
Yes
Locking type
Lock out
Material type
Stainless steel
Type
Total extension
Load capacity in kg
39
Height in mm
35.4
Length in mm
660.4
Extension length in mm
691.6
Long description
Drawer Slide in stainless steel and total extension type with an extension length of 691,6mm. The load capacity is 39kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
