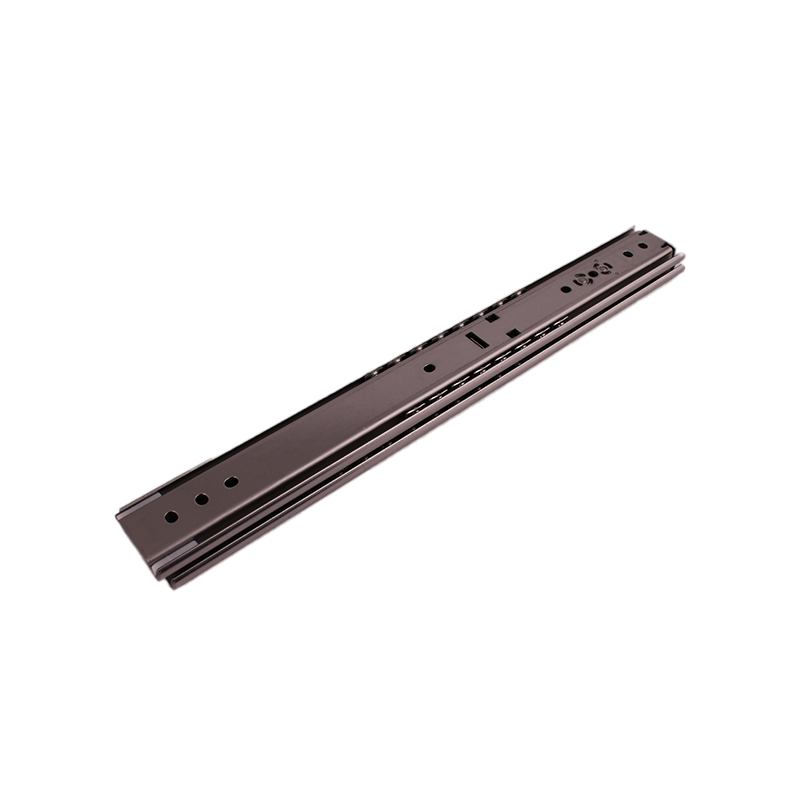

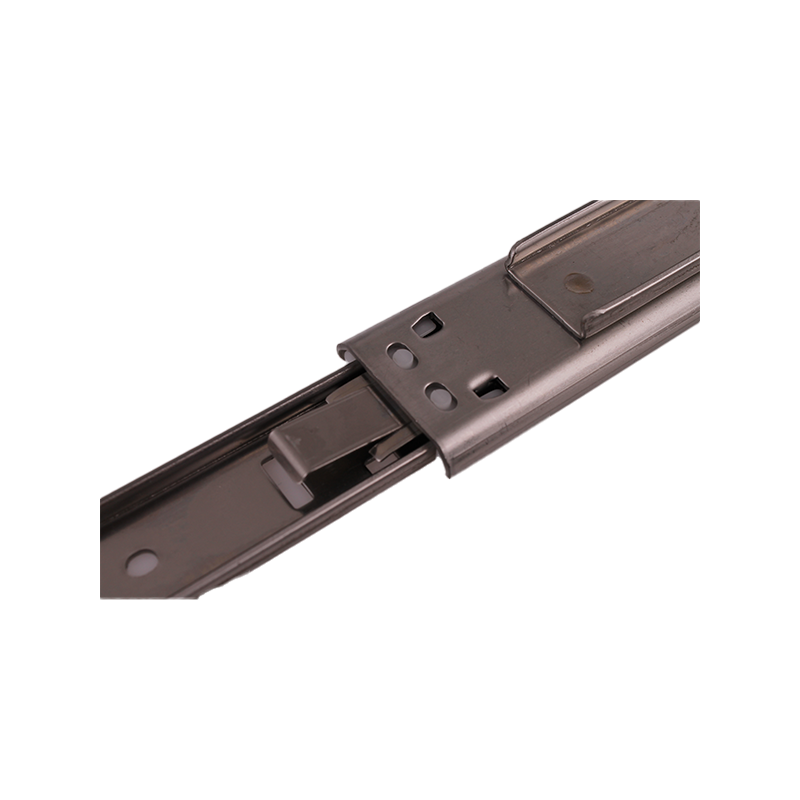

Drawer Slide, stainless steel, extension length =336 mm and load capacity of 64 kg
MT109808
Drawer Slide in stainless steel and total extension type with an extension length of 336mm. The load capacity is 64kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
Yes
Locking type
Lock out
Material type
Stainless steel
Type
Total extension
Weight
640
Load capacity in kg
64
Height in mm
35.4
Length in mm
304.8
Extension length in mm
336
Long description
Drawer Slide in stainless steel and total extension type with an extension length of 336mm. The load capacity is 64kg/pair. W/o friction lock. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
