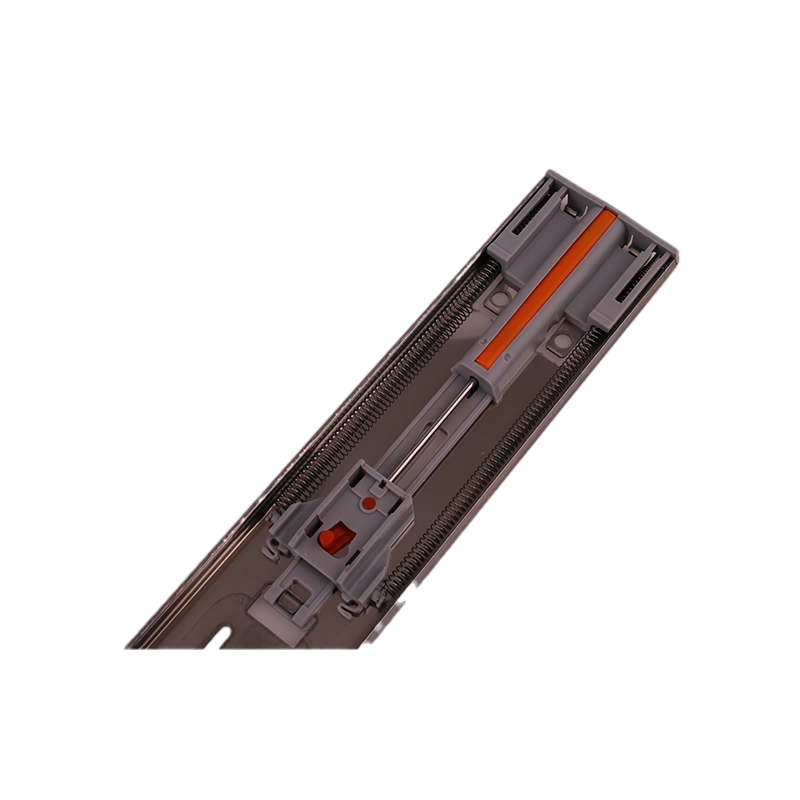

Drawer Slide, stainless steel, extension length =500 mm and load capacity of 35 kg
MT109798
Drawer Slide in stainless steel and total extension type with an extension length of 500mm. The load capacity is 35kg/pair. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
Yes
Locking type
Soft close & self-closing
Material type
Stainless steel
Type
Total extension
Load capacity in kg
35
Height in mm
45.2
Length in mm
500
Extension length in mm
500
Long description
Drawer Slide in stainless steel and total extension type with an extension length of 500mm. The load capacity is 35kg/pair. RoHS 2 approved. We can deliver a wide range of products on request. Please contact us for more information.
