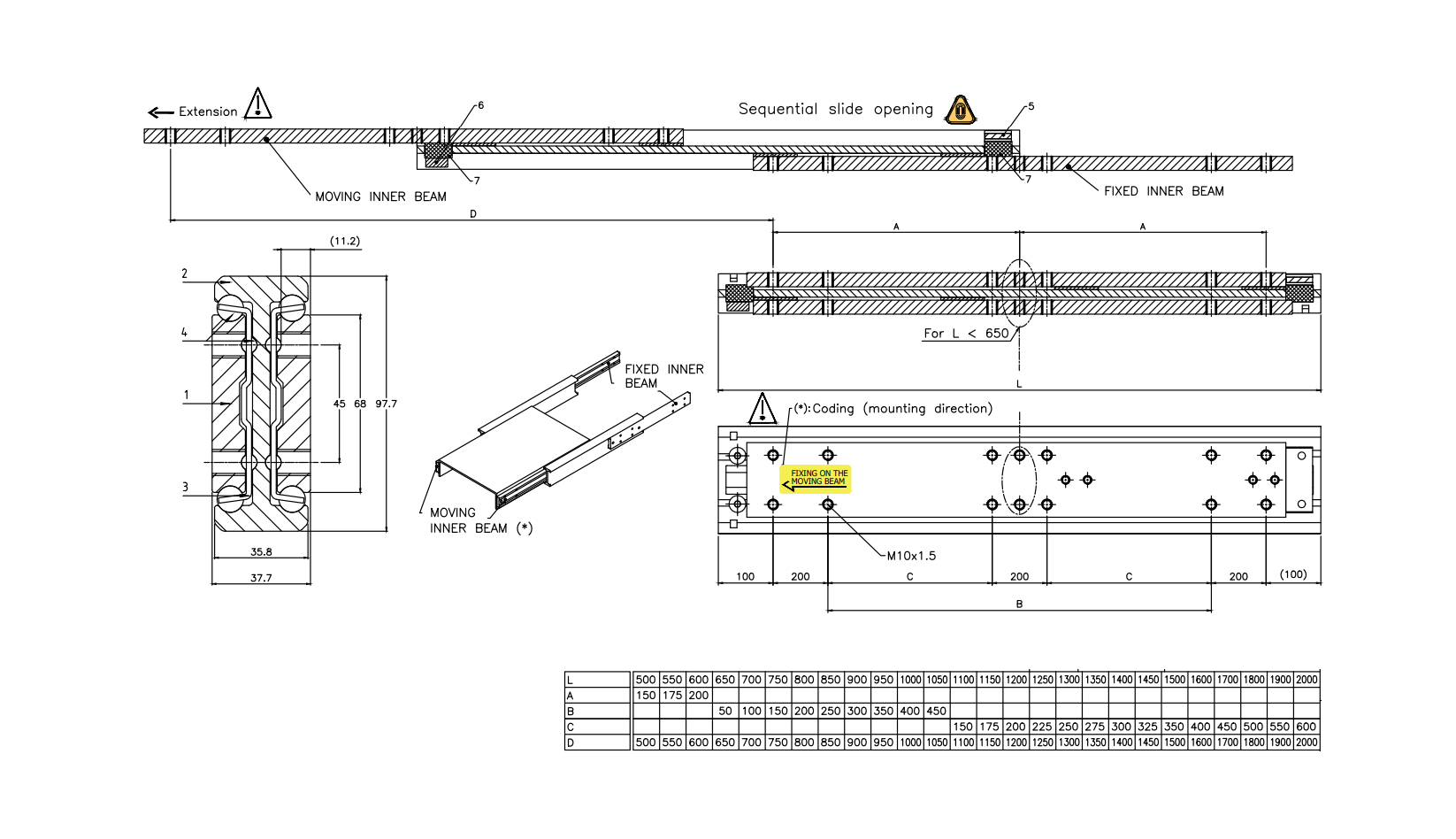

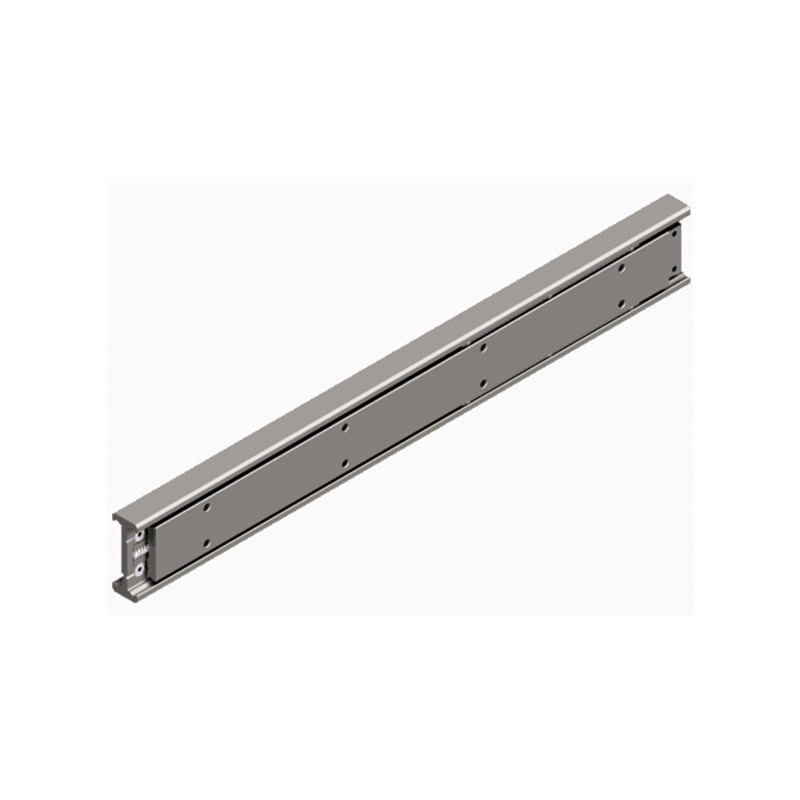

Drawer Slide, steel, extension lenght =800 mm and load capacity of 810 kg
MT109689
Drawer Slide in steel and total extension type with an extension length of 800mm. The load capacity is 810kg/pair. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for more information.
Detachable
No
Material type
Steel
Surface finish
Electro zinc plated
Type
Total extension
Load capacity in kg
810
Height in mm
97.7
Length in mm
800
Extension length in mm
800
Long description
Drawer Slide in steel and total extension type with an extension length of 800mm. The load capacity is 810kg/pair. W/o friction lock. REACH and RoHS approved. We can deliver a wide range of products on request. Please contact us for more information.
