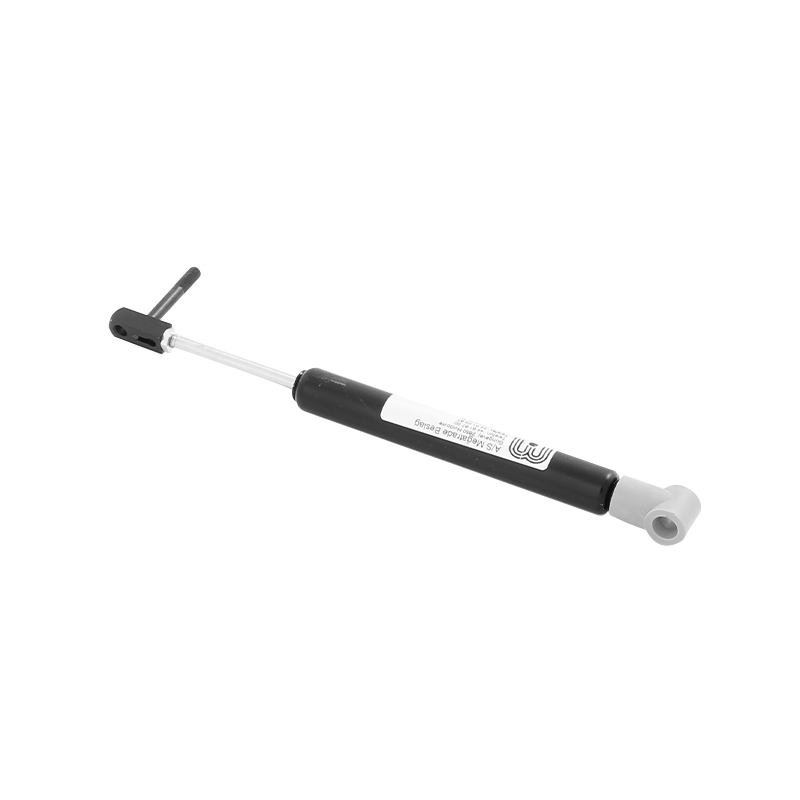

Blocklift, acid proof stainless steel, force = 1200 N, stroke = 250 mm, M10
MT102003
Blocklift in acid proof stainless steel with a force of 1200 N. The stroke is 250 mm, mounting length is 742 mm and the end damping is standard. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Cable release
Material type
Acid proof Stainless Steel
Mounting, cylinder side
M10
Mounting, piston side
M10
Oil chamber
No
Valve
No
Cylinder diameter in mm
28
Force in N
1200

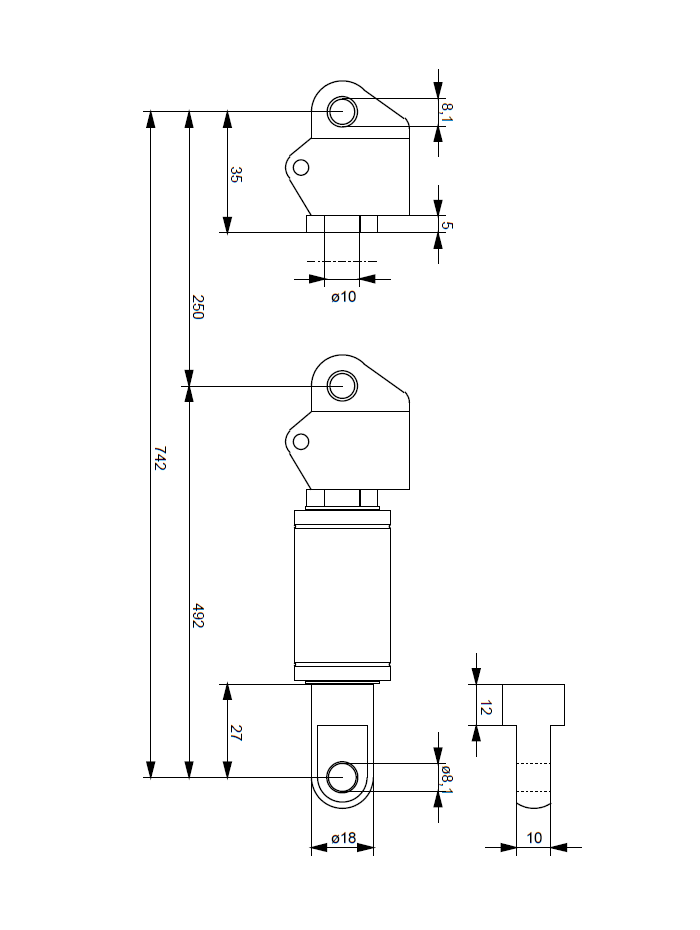

Mounting length in mm
742
Stroke length
250
Piston diameter
10
Long description
Blocklift in acid proof stainless steel with a force of 1200 N. The stroke is 250 mm, mounting length is 742 mm and the end damping is standard. We can deliver a wide range of products on request. Please contact us for more information.
