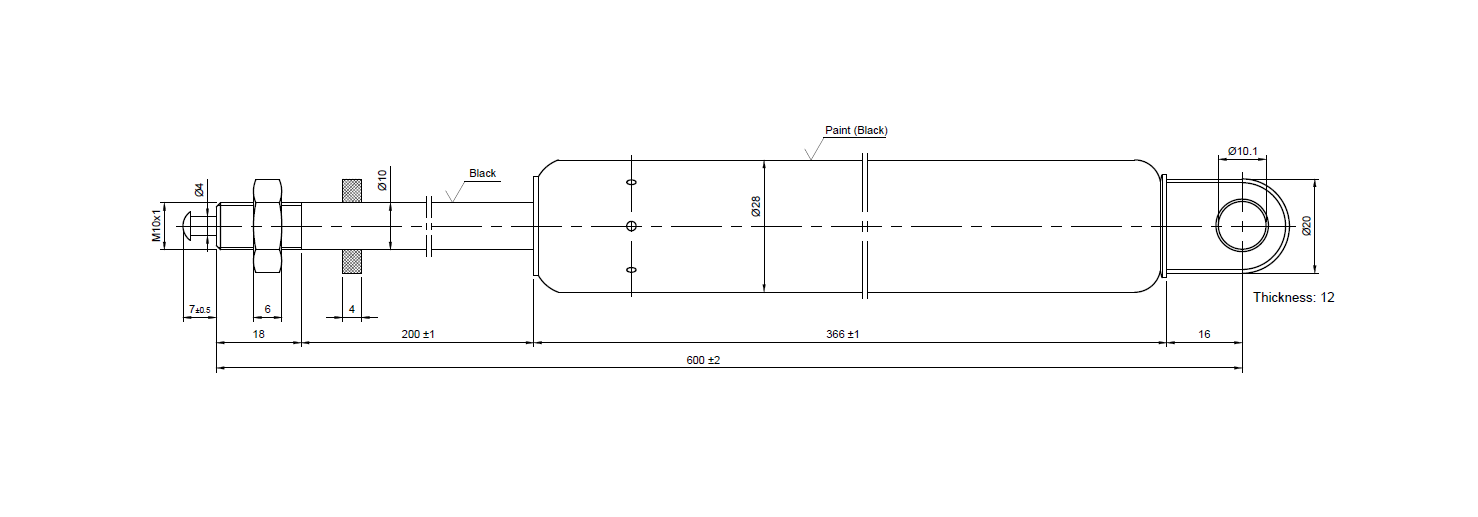

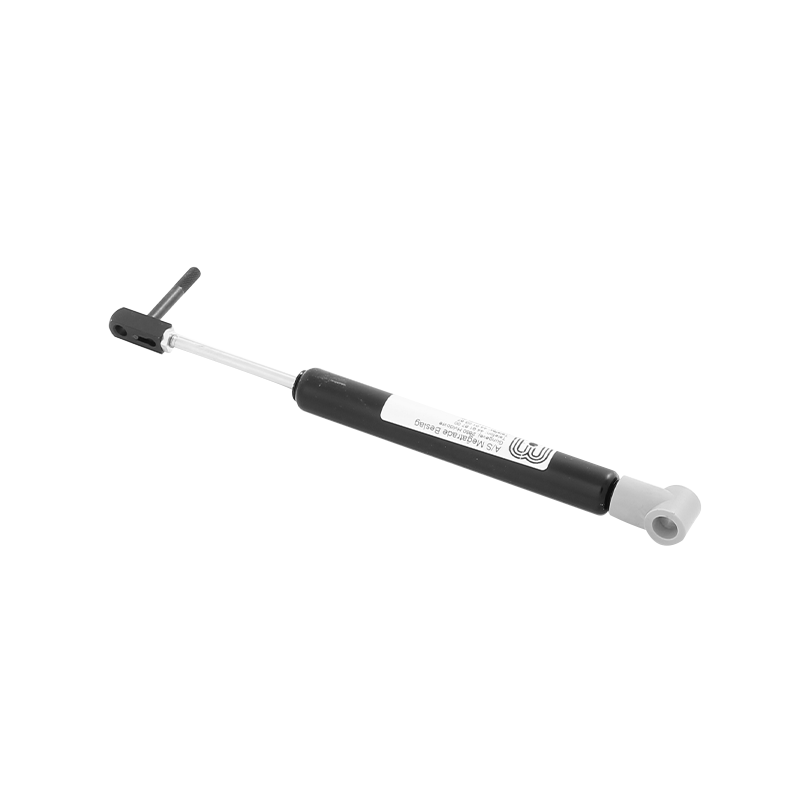

Blocklift, steel, force = 200 N, stroke = 200 mm, M10x1,0
MT109482
Blocklift in steel with a force of 200 N. The stroke is 200 mm, mounting length is 582 mm and the end damping is in compression. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Compression
Fitting, cylinder
Eyelet
Material type
Steel
Mounting, cylinder side
Welded
Mounting, piston side
M10x1,0
Oil chamber
No
Surface finish
Painted
Valve
No
Cylinder diameter in mm
28
Force in N
200
Mounting length in mm
582
Stroke length
200
Piston diameter
10
Long description
Blocklift in steel with a force of 200 N. The stroke is 200 mm, mounting length is 582 mm and the end damping is in compression. We can deliver a wide range of products on request. Please contact us for more information.
