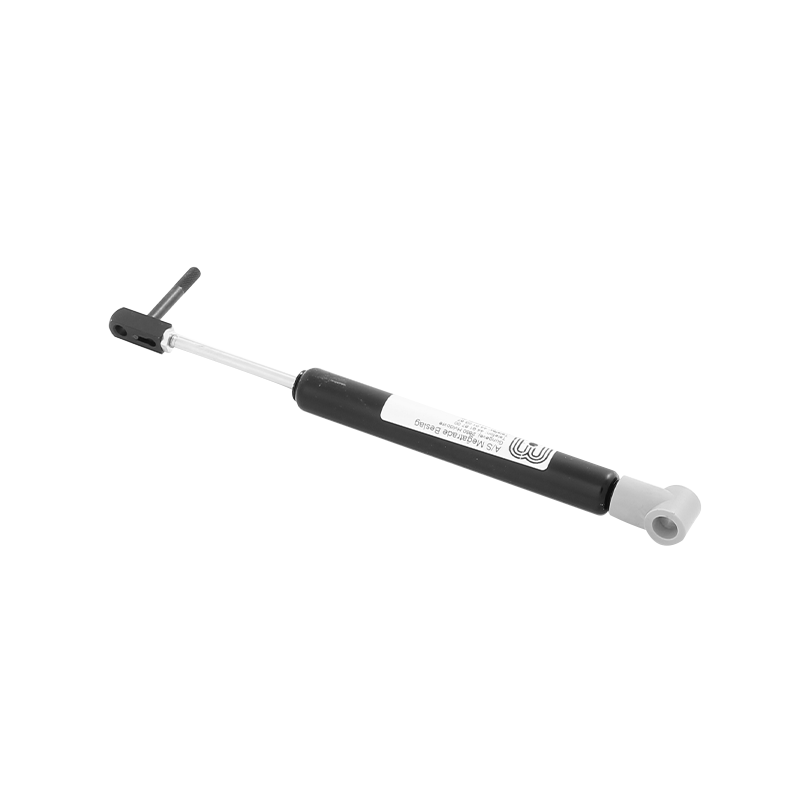

Blocklift, steel, force = 400 N, stroke = 60 mm, M6x0,75
MT109485
Blocklift in steel with a force of 400 N. The stroke is 60 mm, mounting length is 250 mm and the end damping is standard. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Lever release
Material type
Steel
Mounting, cylinder side
M8
Mounting, piston side
M6x0,75
Oil chamber
No
Surface finish
Painted
Valve
Yes
Cylinder diameter in mm
19
Force in N
400
Mounting length in mm
250
Stroke length
60
Piston diameter
6
Long description
Blocklift in steel with a force of 400 N. The stroke is 60 mm, mounting length is 250 mm and the end damping is standard. We can deliver a wide range of products on request. Please contact us for more information.
