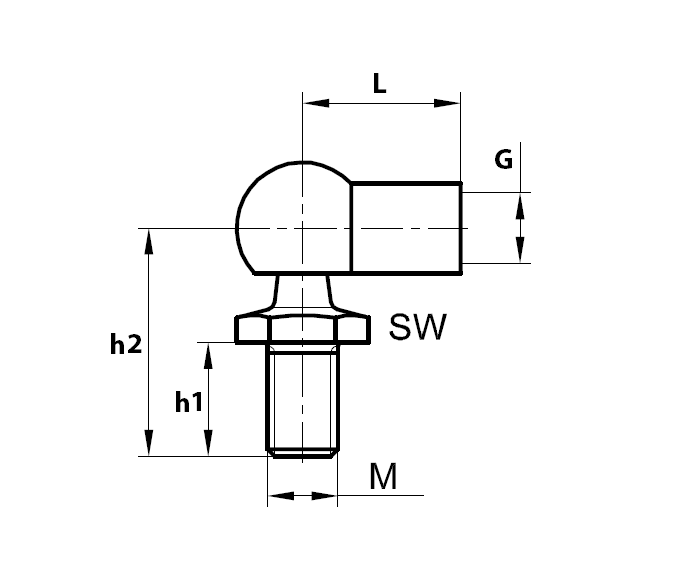

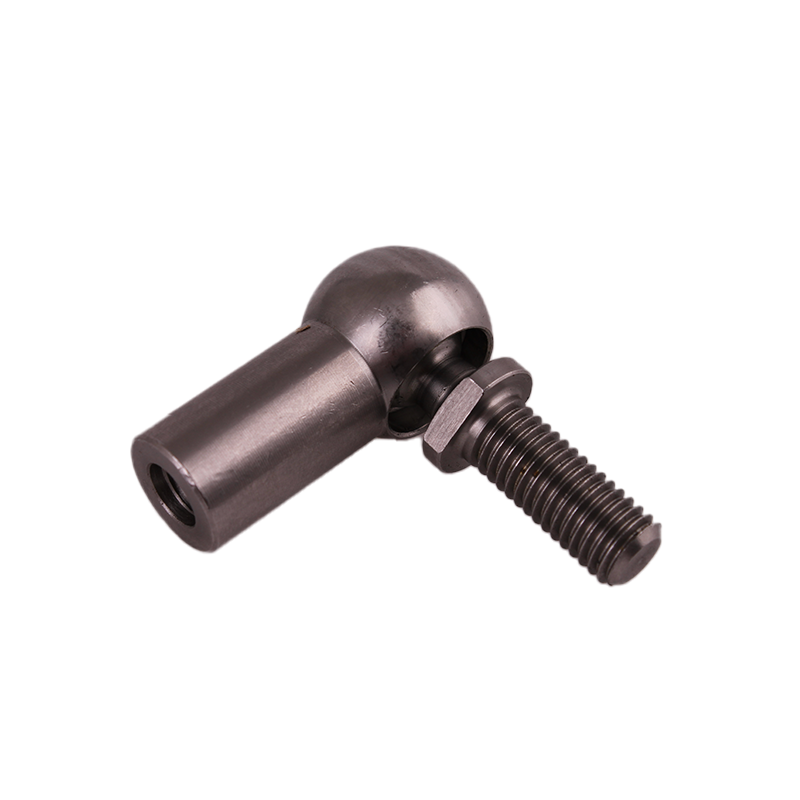

End Fitting, angle joint, stainless steel, M8, L = 35 mm
MT109441
End Fitting of type angle joint manufactured in stainless steel. The primary thread is M8 and the lenght of the end fitting is 35 mm. We can deliver a wide range of products on request. Please contact us for more information.
Female tread size
M8
Material type
Stainless steel
Wrench
13
Type
Angle joint
Male thread size
M10
Hole diameter in mm
0
Length in mm
35
Offset height in mm
0
Thickness in mm
0
Male thread length in mm
25
Long description
End Fitting of type angle joint manufactured in stainless steel. The primary thread is M8 and the lenght of the end fitting is 35 mm. We can deliver a wide range of products on request. Please contact us for more information.
