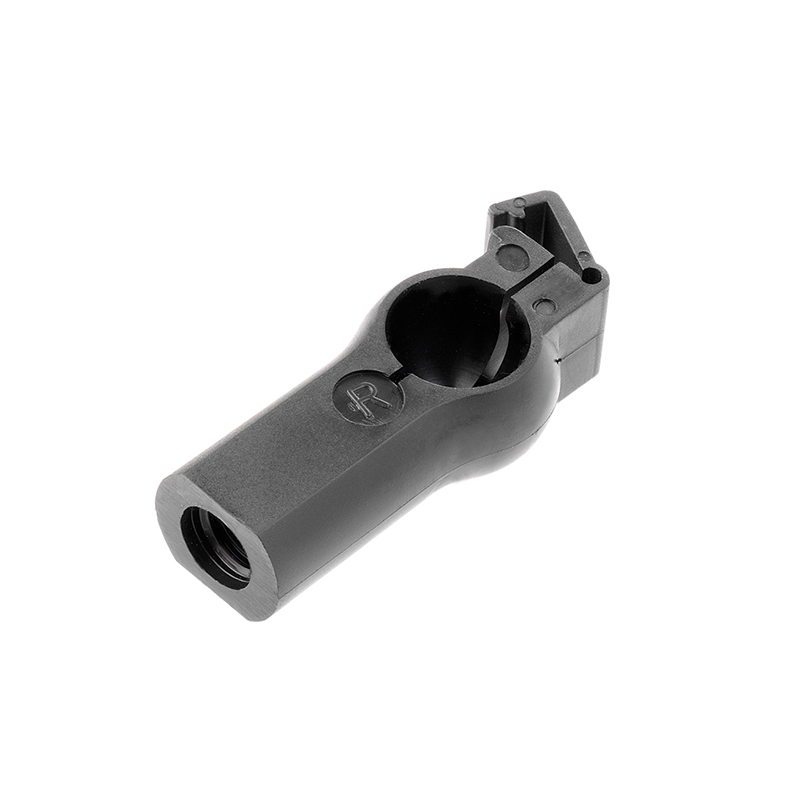

End Fitting, ball socket, polyamide, M6, L = 25 mm
MT102128
End Fitting of type ball socket manufactured in polyamide. The primary thread is M6 and the lenght of the end fitting is 25 mm. We can deliver a wide range of products on request. Please contact us for more information.
Female tread size
M6
Material
PA66
Material type
Polyamide
Type
Ball socket
Hole diameter in mm
0
Ball diameter in mm
10
Length in mm
25
Offset height in mm
0
Thickness in mm
0
Male thread length in mm
0
Net Weight (Kg)
0.0031
HS Code
8302490099
Country of Origin
DE
Long description
End Fitting of type ball socket manufactured in polyamide. The primary thread is M6 and the lenght of the end fitting is 25 mm. We can deliver a wide range of products on request. Please contact us for more information.
