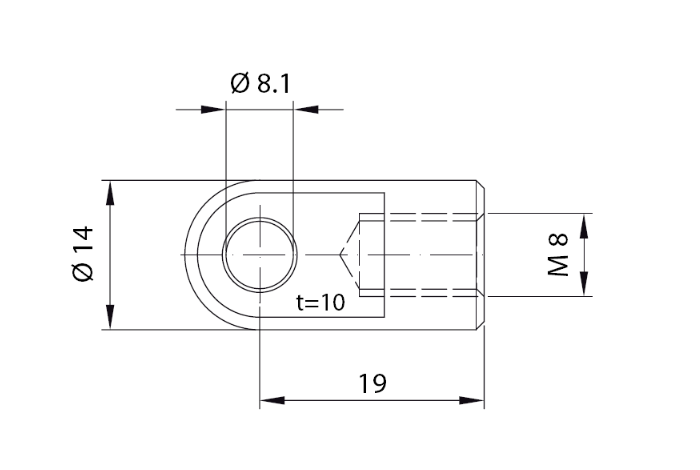

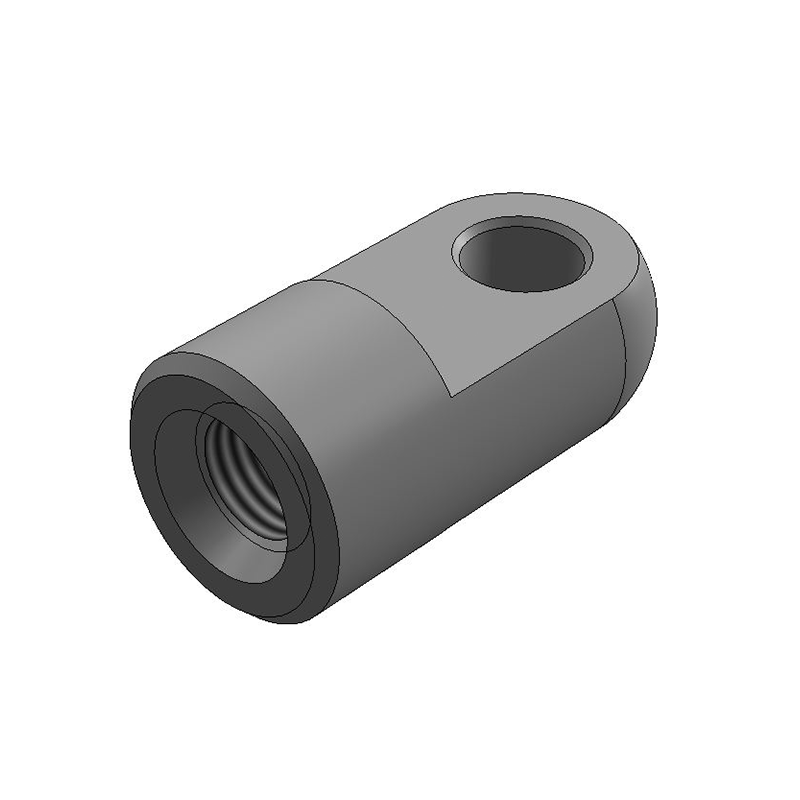

End Fitting, eyelet, stainless steel, M8, L = 19 mm
MT109421
End Fitting of type eyelet manufactured in stainless steel. The primary thread is M8 and the lenght of the end fitting is 19 mm. We can deliver a wide range of products on request. Please contact us for more information.
female tread size
M8
Material type
Stainless steel
Type
Eyelet
Hole diameter in mm
8.1
Length i mm
19
Thickness in mm
10
Udvendigt gevindlængde i mm
0
Nettovægt
0.016
Varekode
8302490099
Lande-/områdekode for oprindelse
DE
Long description
End Fitting of type eyelet manufactured in stainless steel. The primary thread is M8 and the lenght of the end fitting is 19 mm. We can deliver a wide range of products on request. Please contact us for more information.
