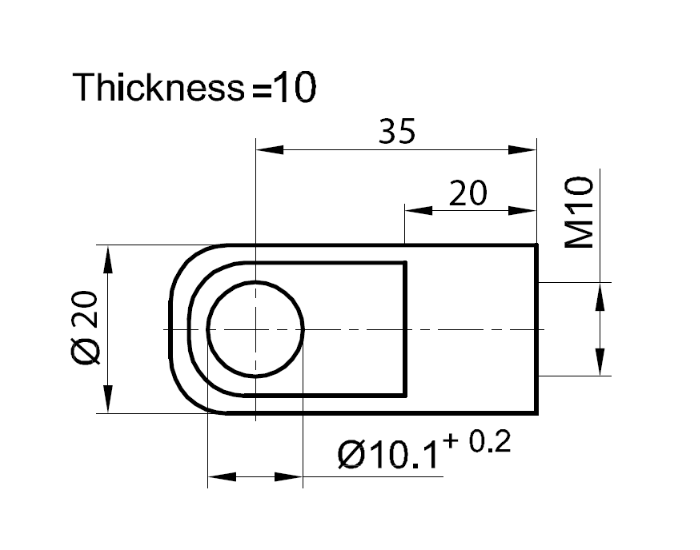

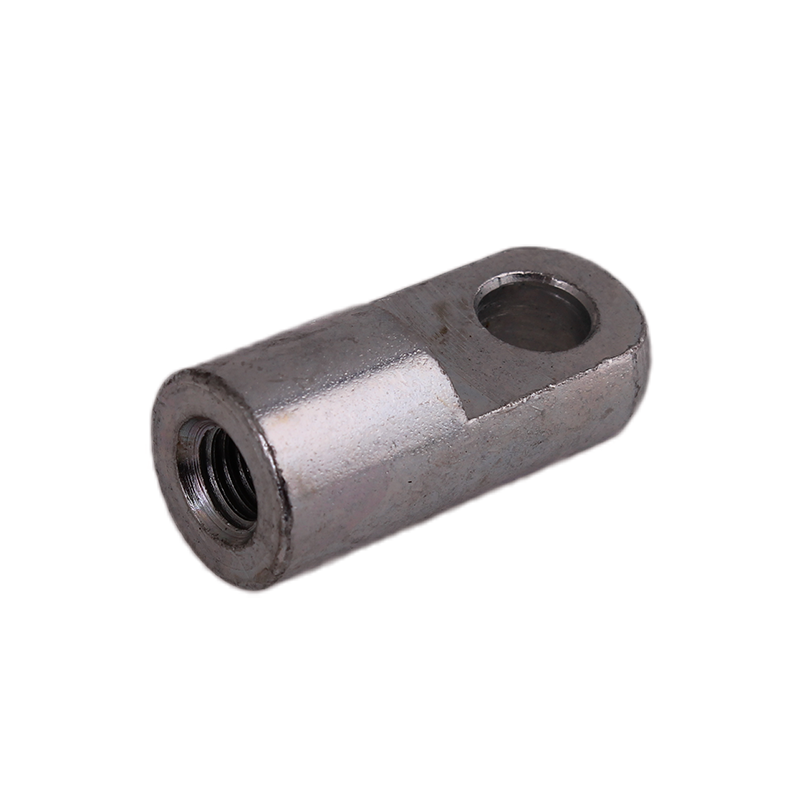

End Fitting, eyelet, steel, M10, L = 35 mm
MT111021
End Fitting of type eyelet manufactured in steel. The primary thread is M10 and the lenght of the end fitting is 35 mm. We can deliver a wide range of products on request. Please contact us for more information.
Female tread size
M10
Material type
Steel
Surface finish
Electro zinc plated
Type
Eyelet
Hole diameter in mm
10.1
Length in mm
35
Thickness in mm
10
Male thread length in mm
0
Long description
End Fitting of type eyelet manufactured in steel. The primary thread is M10 and the lenght of the end fitting is 35 mm. We can deliver a wide range of products on request. Please contact us for more information.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
