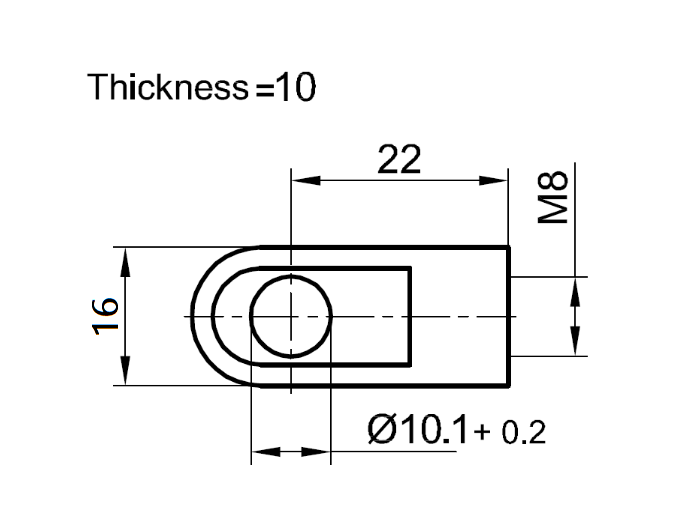

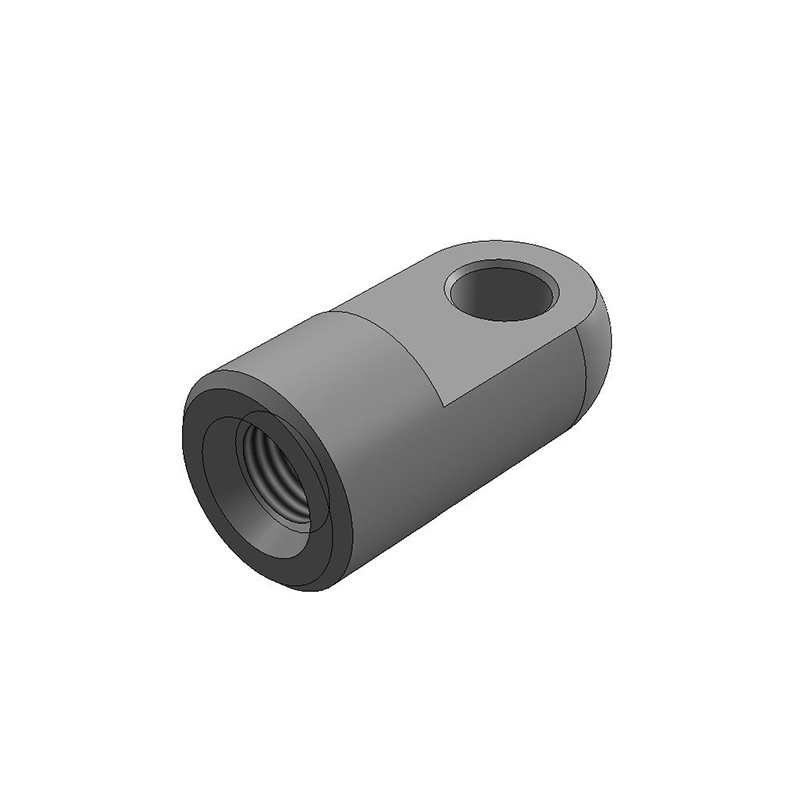

End Fitting, eyelet, steel, M8, L = 22 mm
MT104970
End Fitting of type eyelet manufactured in steel. The primary thread is M8 and the lenght of the end fitting is 22 mm. We can deliver a wide range of products on request. Please contact us for more information.
female tread size
M8
Material type
Steel
Surface finish
Electro zinc plated
Type
Eyelet
Hole diameter in mm
10.1
Length i mm
22
Thickness in mm
10
Udvendigt gevindlængde i mm
0
Long description
End Fitting of type eyelet manufactured in steel. The primary thread is M8 and the lenght of the end fitting is 22 mm. We can deliver a wide range of products on request. Please contact us for more information.
