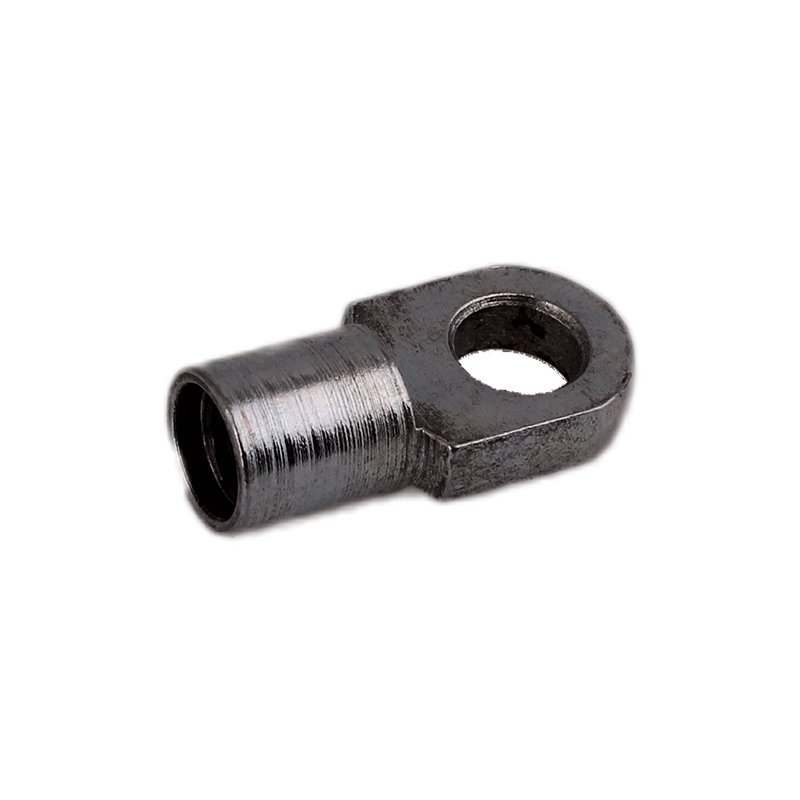

End Fitting, eyelet, steel, M8, L = 22 mm
MT109436
End Fitting of type eyelet manufactured in steel. The primary thread is M8 and the lenght of the end fitting is 22 mm. We can deliver a wide range of products on request. Please contact us for more information.
female tread size
M8
Material type
Steel
Surface finish
Electro zinc plated
Type
Eyelet

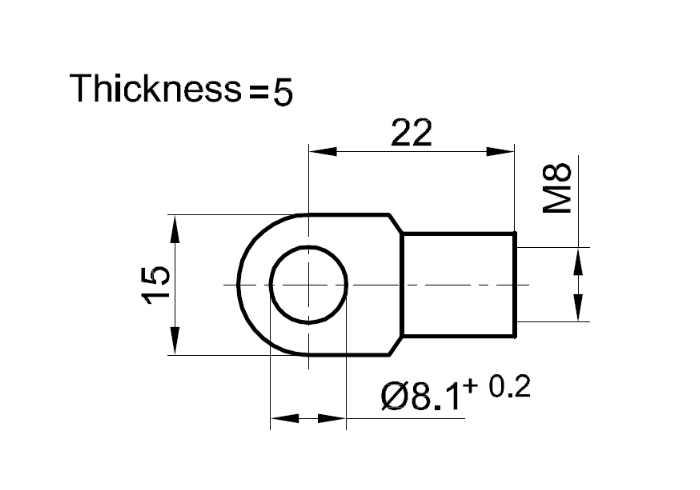

Hole diameter in mm
8.1
Length i mm
22
Thickness in mm
5
Udvendigt gevindlængde i mm
0
Long description
End Fitting of type eyelet manufactured in steel. The primary thread is M8 and the lenght of the end fitting is 22 mm. We can deliver a wide range of products on request. Please contact us for more information.
