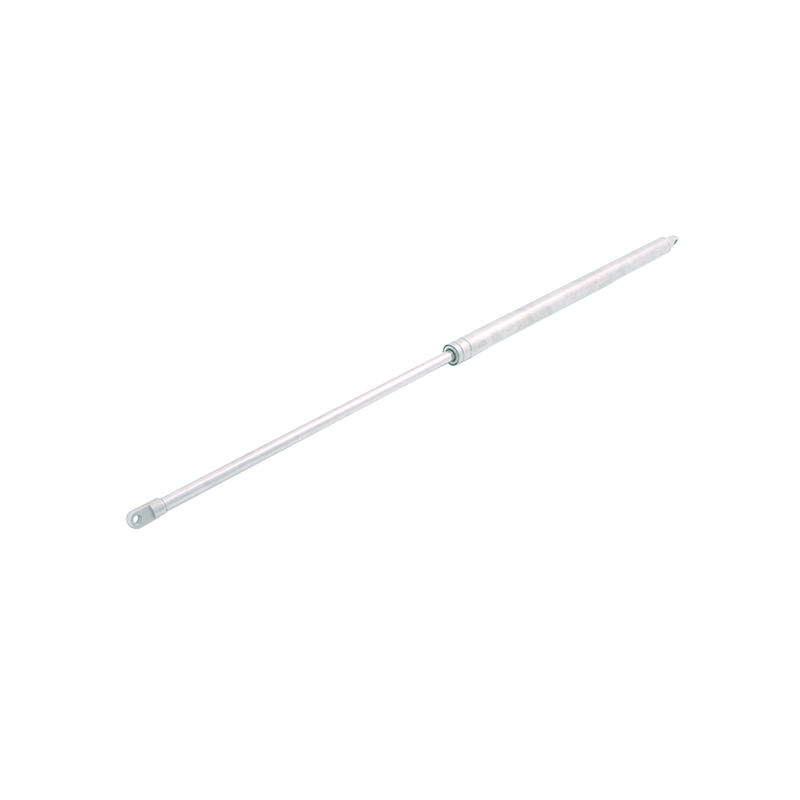

Gas spring, acid proof stainless steel, M10 thread, stroke length = 501 mm, force = 2000 N
MT104515

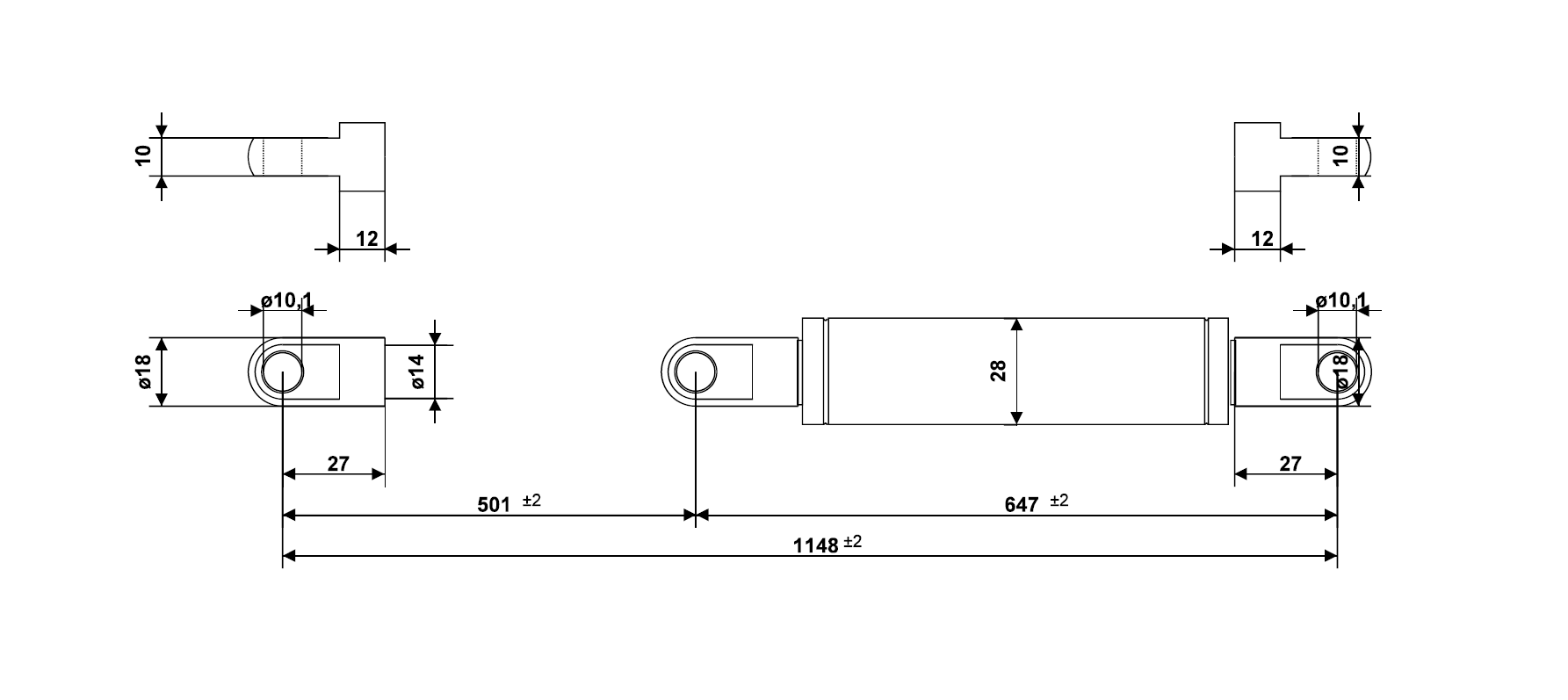

Gas spring manufactured in acid proof stainless steel with M10 thread for mounting the end fittings. Stroke length is 501 mm and the force is 2000 N. The mounting length is 1148 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Eyelet
Fitting, piston
Eyelet
Material type
Acid proof Stainless Steel
Mounting, cylinder side
M10
Mounting, piston side
M10
Oil chamber
Yes
Progression
49,5
Valve
Yes
Cylinder diameter in mm
28
Force in N
2000
Mounting length in mm
1148
Stroke length
501
Piston diameter
14
Nettovægt
1.691
Varekode
8302490099
Lande-/områdekode for oprindelse
DE
Long description
Gas spring manufactured in acid proof stainless steel with M10 thread for mounting the end fittings. Stroke length is 501 mm and the force is 2000 N. The mounting length is 1148 mm. We can deliver a wide range of products on request. Please contact us for more information.
