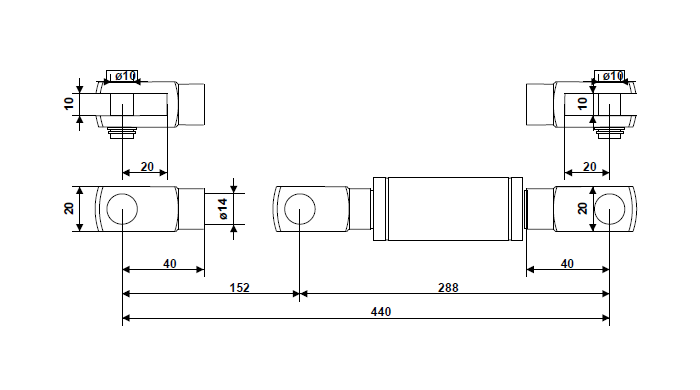

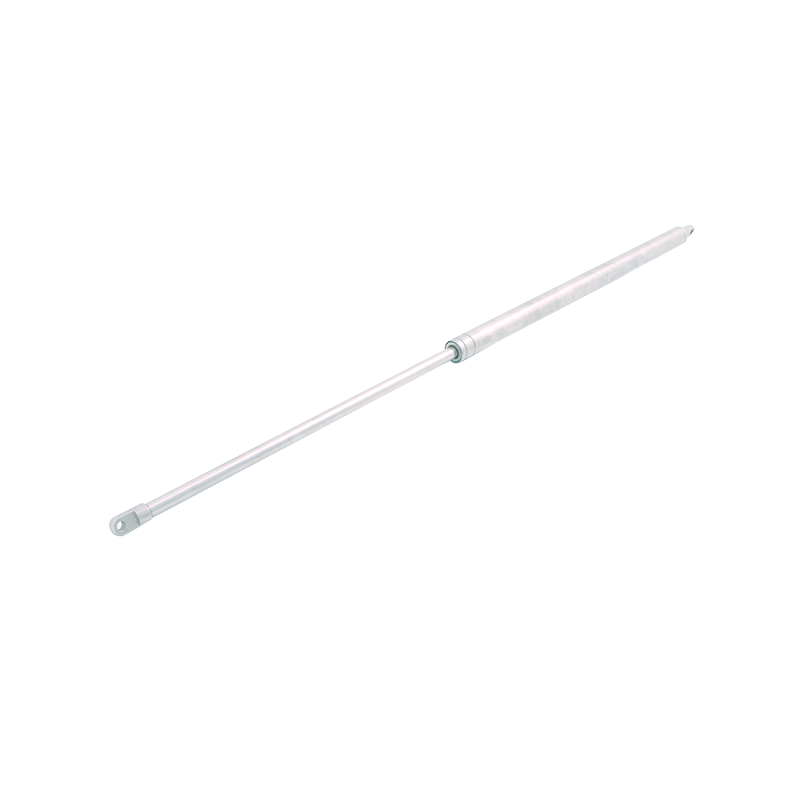

Gas spring, stainless steel, M10 thread, stroke length = 152 mm, force = 1300 N
MT104481
Gas spring manufactured in stainless steel with M10 thread for mounting the end fittings. Stroke length is 152 mm and the force is 1300 N. The mounting length is 440 mm. We can deliver a wide range of products on request. Please contact us for more information.
End damping
Standard
Fitting, cylinder
Clevis joint
Fitting, piston
Clevis joint
Material type
Stainless steel
Mounting, cylinder side
M10
Mounting, piston side
M10
Oil chamber
No
Progression
40
Valve
Yes
Cylinder diameter in mm
28
Force in N
1300
Mounting length in mm
440
Stroke length
152
Piston diameter
14
Long description
Gas spring manufactured in stainless steel with M10 thread for mounting the end fittings. Stroke length is 152 mm and the force is 1300 N. The mounting length is 440 mm. We can deliver a wide range of products on request. Please contact us for more information.
